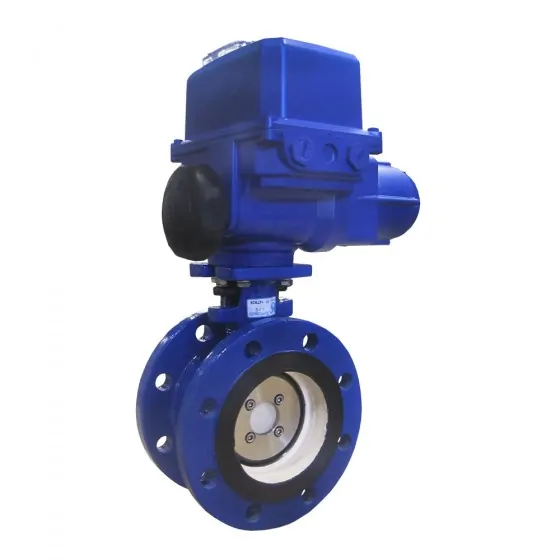

High performance butterfly valves WR and WD series are designed for the growing sanitation market. Developed following international standards, have automatic sealing system, providing high reliability under high and low pressure, long service life and low operating torque.
Eccentric disc (WR) or bi-excenentric (WD)
Rod sealing
Manual or automatic
Automatic sealing

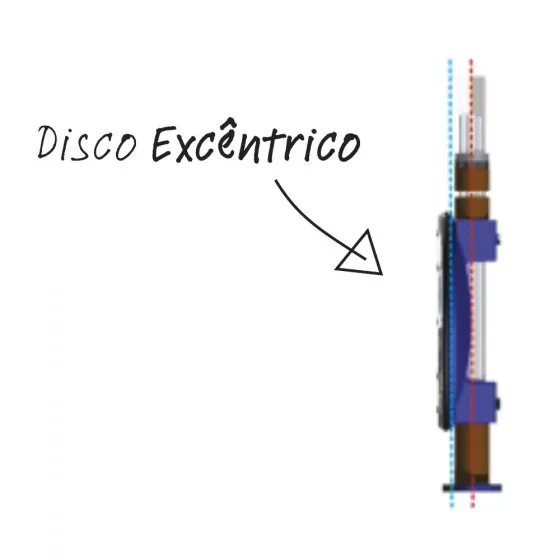

Eccentric or bi-excentric disc
Flanged Type for Flanges Installation According to ASME, Awwa, DIN and NBR standards. Face-to-Standard Faced Awwa C-504.
Rod sealing
Disc designed to provide low load loss in fully open position, as well as allowing greater flow of fluid in small disc spray angles.
Manual or automatic
Sealing by means of gaxetas with premeated gasket mounted in the inverted position,
allowing easy adjustment and uniform compression of gaskets, and does not
interfere with actuator assembly directly on the top -top flange. Standardized gaskets, facilitating their interchange.
Automatic sealing
It allows the coupling of manual, pneumatic and electrical drives directly on the top flange that, in conjunction with the rod, follows ISO 5211.
Site
Mechanically nailed to the body with polished sealing surface, ensuring low drive torque and longer life to seal.
Finite elements
Project developed with the aid of software for analysis of finite elements ensuring greater structural reliability to the set.
Settings
Construction Standard
AWWA C-504
Body construction
Flangeada
Face a face
Standard AWWA C-504 Flangeada curto
Dimensions
75 a 1800mm
Pressure Limits
Pn10
PN16
PN25
Site
Elastomer
Polyurethane
Material
| 1 | Identification (tag) | ||
|---|---|---|---|
| 2 | Fluent | ||
| 3 | Quantity (part) | ||
| 4 | Type / series | Eccentric flanged butterfly (WR) / BI-EXCENTRIC (WD) | |
| 5 | Face a face | AWWA C-504/2010 | |
| 6 | Body material | ASTM A536 Gr. 65.45.12 | |
| 7 | Shutter / disc material | ASTM A536 Gr.65.45.12 ou ASTM A351 CF8M | |
| 8 | Rod (axis) | ASTM A276 TP410 (PN10) / ASTM A564 Tp630 (17-4 PH) PN16 e PN25 | |
| 9 | Album sealing | BUNA N or EPDM (Integral without amendments) | |
| 10 | Body sealing ring | Stainless steel | |
| 11 | Bushings | Bronze | |
| 12 | Diameter | 100 a 1800mm (4″ a 72″) | |
| 13 | Connection / drilling | ABNT NBR 7675 (PN10 / PN16 or PN25) | |
| 14 | Construction | AWWA C-504/2010 | |
| 15 | Maximum work pressure | Pn10 / lim16 / pn25 | |
| 16 | Type | Eccentric (WR) and Bi-Excencorica (WD) | |
| 17 | SEAL CLASS / STANDARD | Pond / awwa C-504 /2010 | |
| 18 | Identification (platelet) | Stainless steel | |
| 19 | Paint | Defining | |
| 20 | Trigger | Manual / Pneumatic / Electric |
Dimensional table
Values in millimeters
| DN | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 127 | 127 | 152 | 203 | 203 | 203 | 203 | 203 | 203 | 203 | 305 | 305 | 305 | 305 | 381 |
| B | 140 | 190 | 209 | 215 | 247 | 305 | 353 | 380 | 430 | 509 | 585 | 625 | 690 | 770 | 1080 |
| C | 260 | 368 | 400 | 411 | 548 | 598 | 660 | 700 | 790 | 932 | 1091 | 1190 | 1320 | 1450 | 1610 |
| D | 17 | 22 | 27 | 27 | 27 | 27 | 36 | 36 | 36 | 46 | 55 | 108 | 108 | 128 | 128 |
| □H | □17 | □22 | □27 | □27 | □27 | □27 | □36 | □36 | □36 | □46 | □55 | – | – | – | – |
| Uh | – | – | – | – | – | – | – | – | – | – | – | Ø72 | Ø72 | Ø98 | Ø98 |
| ISO 5211 | F07 | F10 | F10 | F10 | F12 | F12 | F14 | F16 | F16 | F16 | F16 | F25 | F25 | F30 | F30 |
