SETTINGS
Construction Standard
Body construction
Face a face
Dimensions
Pressure Limits
Site
Material
Body
Disco
Site
Haste
ASTM A-216 WCB Carbon Steel
Fither Nodular A-536 Gr.65.45.12
Nbr (hello-n)
Stainless steel A-276 410 (default)
Astm A-351 CF8-M Stainless steel
Nodular cute with e-CTFE
Neoprene
Stainless steel A-276 316 / 316L
FoFo Nodular ASTM A-536
Nodular cute with nylon
EPDM
Stainless steel A-564 630 (17-4ph)
Bronze
Nodular cute with nickel
Hypalon
Others under consultation
Aluminum
Bronze / aluminum
Faston
Duplex stainless steel
Duplex stainless steel
Good Ga-1
Others under consultation
Ac inoxa A-351 CF8-M / CF8
SBR
Others under consultation
Nitrilica Caboxilada
Dimensional table
Values in millimeters
DB
14″
16″
18″
20″
24″
A
77
86
5
105
129
152
B
350
375
402
427
491
C
641
676
743
794
914
D
432
486
546
603
718
F
22
22
22
22
22
G
31
31
40
40
49
H
27
27
36
36
46
N
13
13
17
17
23
O
125
125
140
140
165
ISO 5211
F12
F12
F14
F14
F16
Peso
Approximate weight in kgs.
Type
14″
16″
18″
20″
24″

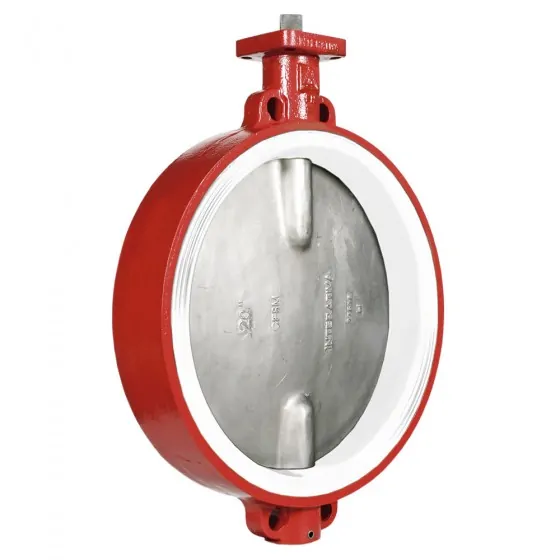

Wafer
51
72
93
112
170

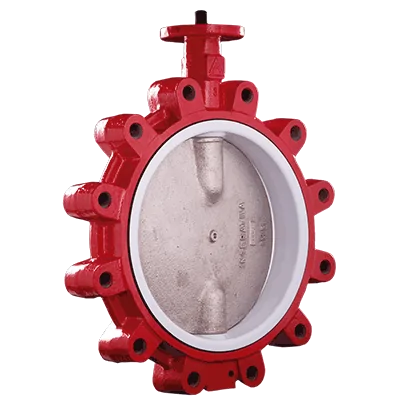

Lug
60
92
109
151
230
Flangeada
83
103
130
185
245
TORQUE
Orientative values considering fluid water at 20ºC and speed up to 4.5m/s
CWP
14″
16″
18″
20″
24″
100 psi
760
1040
1390
1860
2900
150 psi
760
1040
1390
1860
2900
Exploded view
Item
Description
1
Corpo (Wafer / Lug / Flangeado)
2
SEED SOFT
3
Disco
4
Haste superior
5
Haste lower
6
Upper bearing
7
Inferior
8
Anti-expulsion pin
