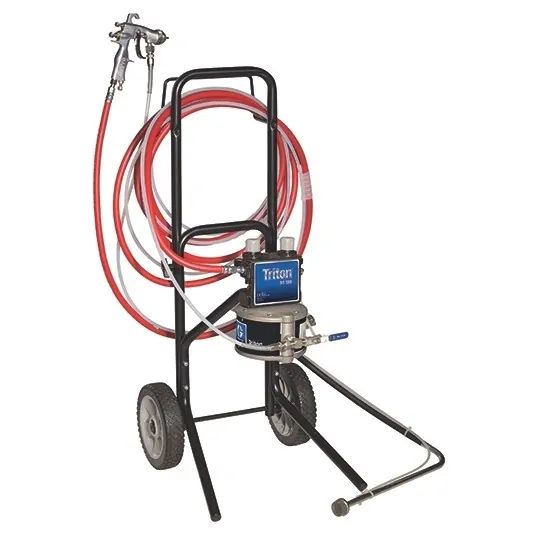

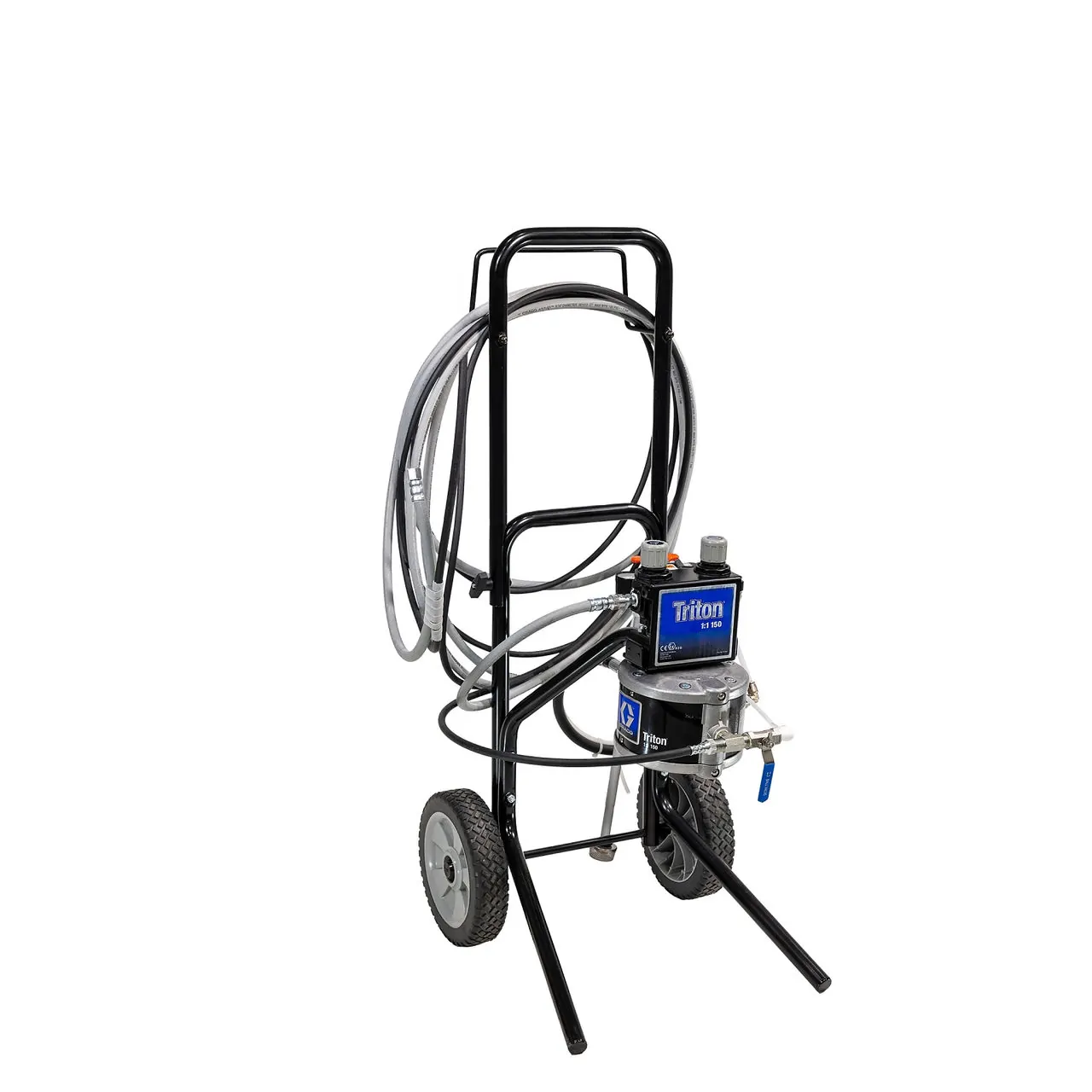

Triton is an air-operated diaphragm spray package that applies a high-quality decorative finish to wood and metal parts. It constitutes a more effective alternative to traditional pressure vessels and standard pneumatic diaphragm pumps.
| Power supply | Ar |
|---|---|
| Includes | suction hose |
| Mounting location | Cart assembly |
| Compatible material | CARC (chemical resistant coating), Enamel, Epoxy, High solids, Latex, Lacquer, Metallics, Pigment, Single component, Solvent-based paints, Solvent-based, Varnish primer |
| Model | Triton |
| Pistol model | Without applicator |
| Weight (lbs) | 29,98 |
| Pistol included | 0 |
| Maximum working pressure (psi) | 100 |
| Maximum inlet air pressure (psi) | 100 |
| Pump ratio | 1:1 |
| Series | 308 |
| Fluid inlet size (in.) | 3/4 |
| Fluid outlet size (in.) | 3/8 |
| Maximum Flow Rate (GPM) | 8,5 |
| Pistol technology | Simple systems |
| Type | Air driven sprayer |
| Type of fluid inlet thread | NPT |
| Fluid outlet thread type | NPT |
| Type of power | suction hose |
| Pump type | Pneumatic diaphragm pumps |
| Mounting type | Cart assembly |
| Pistol type | Without applicator |
| Pressure type | Low pressure |
| Product type | Simple systems |
| Sprayer Type | Air sprayer |
| Type of spray | Fed to ar |
| Power supply | Ar |
| Includes | suction hose |
| Mounting location | Cart assembly |
| Compatible material | CARC (chemical resistant coating), Enamel, Epoxy, High solids, Latex, Lacquer, Metallics, Pigment, Single component, Solvent-based paints, Solvent-based, Varnish primer |
| Model | Triton |
| Pistol model | Without applicator |
| Weight (kg) | 13.6 |
| Pistol included | 0 |
| Maximum working pressure (bar) | 7 |
| Maximum working pressure (kPa) | 700 |
| Maximum working pressure (kg/cm²) | 7.03 |
| Maximum inlet air pressure (bar) | 7 |
| Maximum inlet air pressure (kPa) | 700 |
| Maximum inlet air pressure (psi) | 100 |
| Pump ratio | 1:1 |
| Series | 308 |
| Fluid inlet size (cm) | 1.905 |
| Fluid inlet size (mm) | 19.05 |
| Fluid inlet size (in.) | 3/4 |
| Fluid outlet size (cm) | 0.9525 |
| Fluid outlet size (mm) | 9.525 |
| Fluid outlet size (in.) | 3/8 |
| Maximum flow rate (L/min) | 32 |
| Pistol technology | Simple systems |
| Type | Air driven sprayer |
| Type of fluid inlet thread | NPT |
| Fluid outlet thread type | NPT |
| Type of power | suction hose |
| Pump type | Pneumatic diaphragm pumps |
| Mounting type | Cart assembly |
| Pistol type | Without applicator |
| Pressure type | Low pressure |
| Product type | Simple systems |
| Sprayer Type | Air sprayer |
| Type of spray | Fed to ar |
