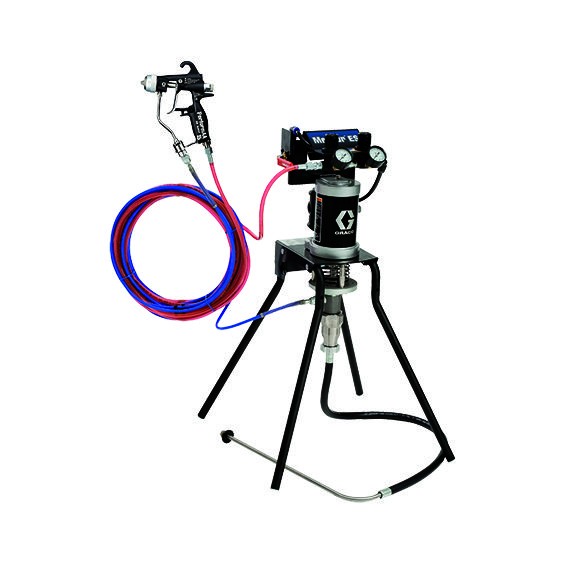

Merkur ES 15:1 Air Assisted Painting Equipment – ​​Standard Assembly

Main features

• Quick cleaning system (quick flush) that takes less than 1 minute.

• Uses up to 45% less material to fill the system compared to competitive models.

• Provides superior and uniform finish.

• Low profile design makes it easy to transport.

• Easy to adjust and monitor air control, with integrated carrying handle.

• Pneumatic motor that ensures consistent finishing and quick operation changes.

• Suction hose with sieve that reduces material waste in the supply container.

• Lightweight, flexible 1/8” fluid hose that reduces material and solvent consumption.

Technical specifications

• Fluid outlet size: 1/4”

• Fluid outlet thread type: NPSM

• Number of pistols included: 1

• Gun model: PerformAA 15 Wood Lacquer

• Gun Technology: Air-Assisted

• Gun type: Air assisted

• Hose inner diameter: 0.125”

• Maximum flow: 0.4 GPM (approx. 1.5 L/min)

• Maximum hose length: 25 ft (approx. 7.6 m)

• Maximum sound pressure level: 76.5 dB(A)

• Maximum nozzle size (tip): 0.019”

• Maximum working pressure: 10.3 MPa (1500 psi)

• Model: Merkur ES

• Engine type: Pneumatic

• Mounting type: Stand Mount

• Power source: Compressed air

• Pressure type: High pressure

• Product Type: Spray Package

• Pump ratio: 15:1

• Pump liner material: Carbon steel

• Pump type: Pneumatic piston pump

• Spray Type: Air-Assisted Airless

• Weight: 23 lb (approx. 10.4 kg)

Materials in contact with the product (wet parts)

• Stainless steel

• Nickel-plated carbon steel

• Tungsten Carbide

• PTFE

• Acetal

• Leather

• UHMWPE

• Engineering plastics

• Nylon

• Fluoroelastômeros

• Polyethylene

Items included in the package

• PerformAA 15 gun with air cap for wood applications

• suction hose

• Table supports (stand mount)

Recommended application

Suitable for fine finishing applications, such as varnishes and lacquers, where high control, waste reduction and uniform finishing are required.
