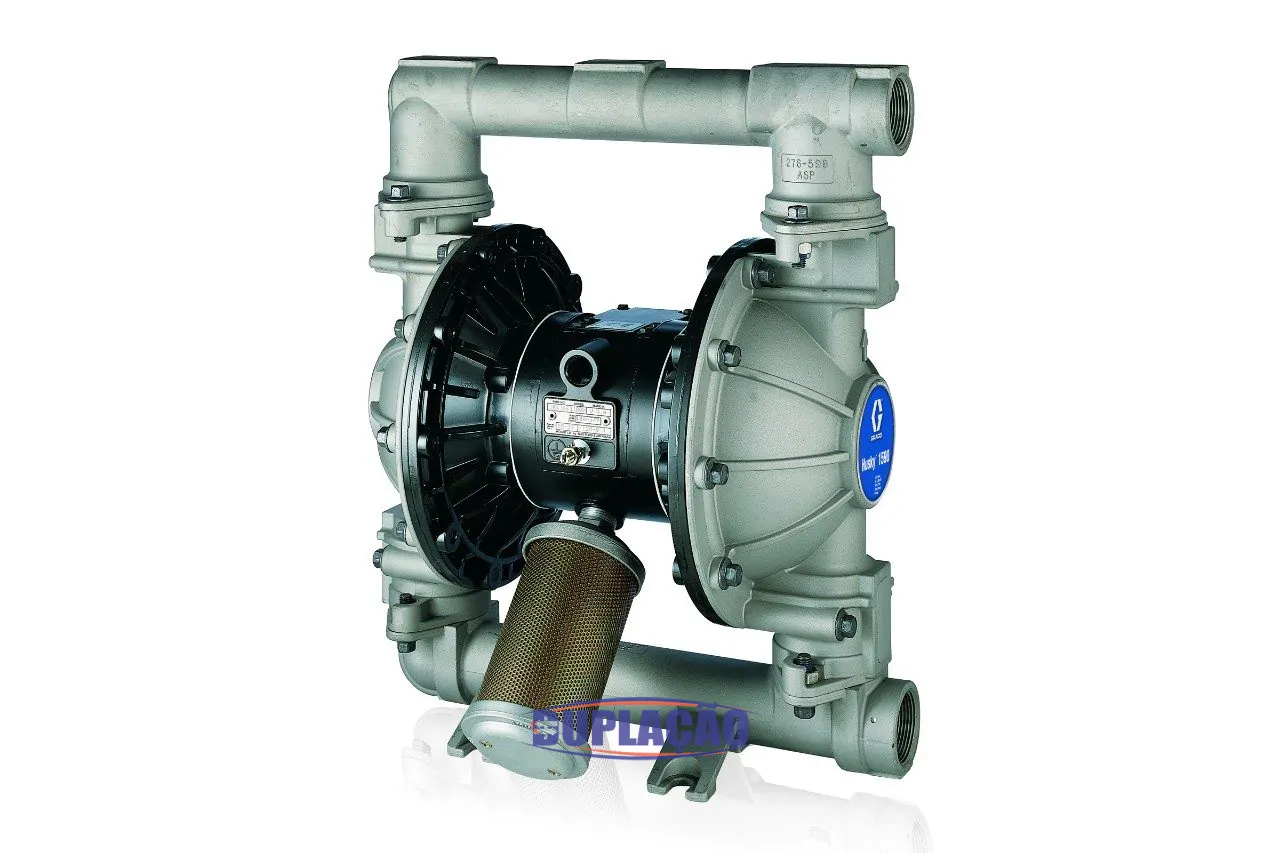

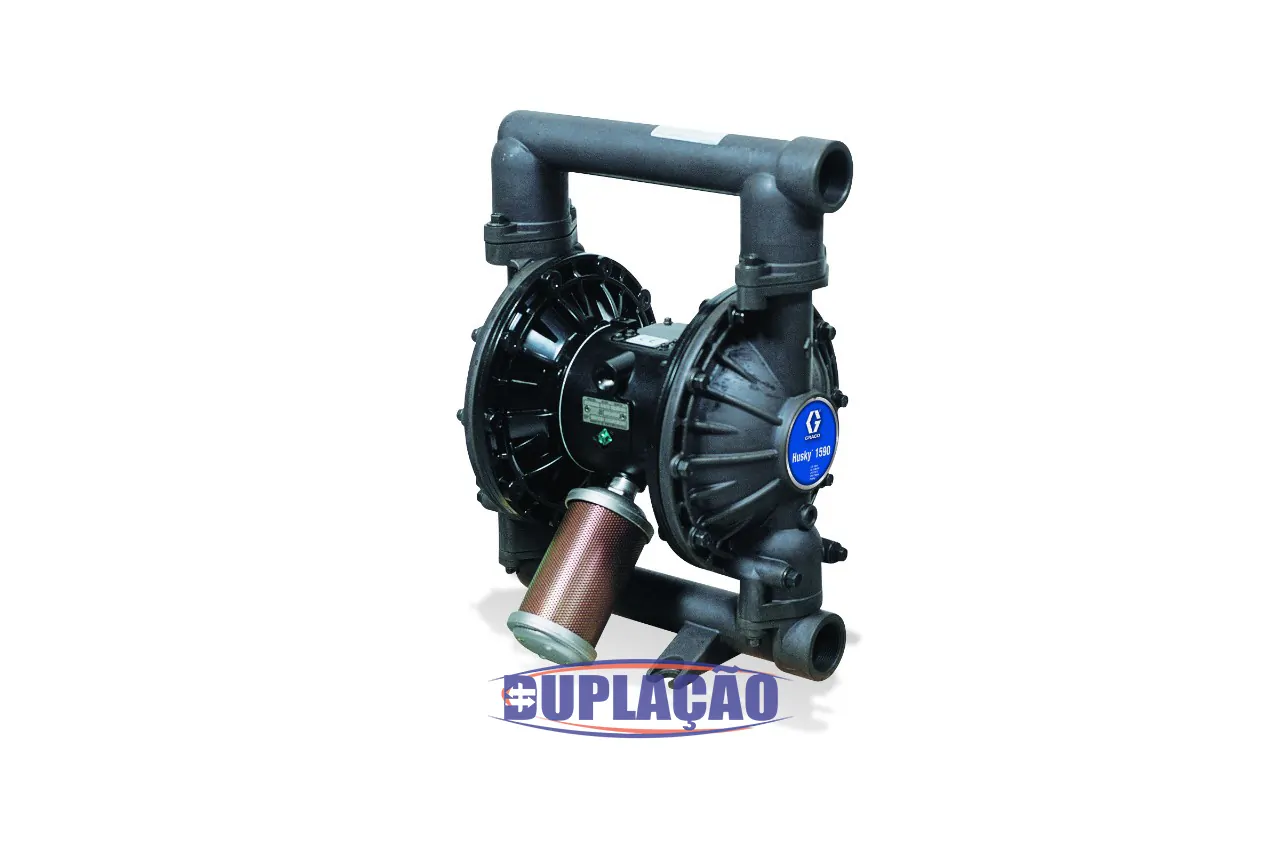

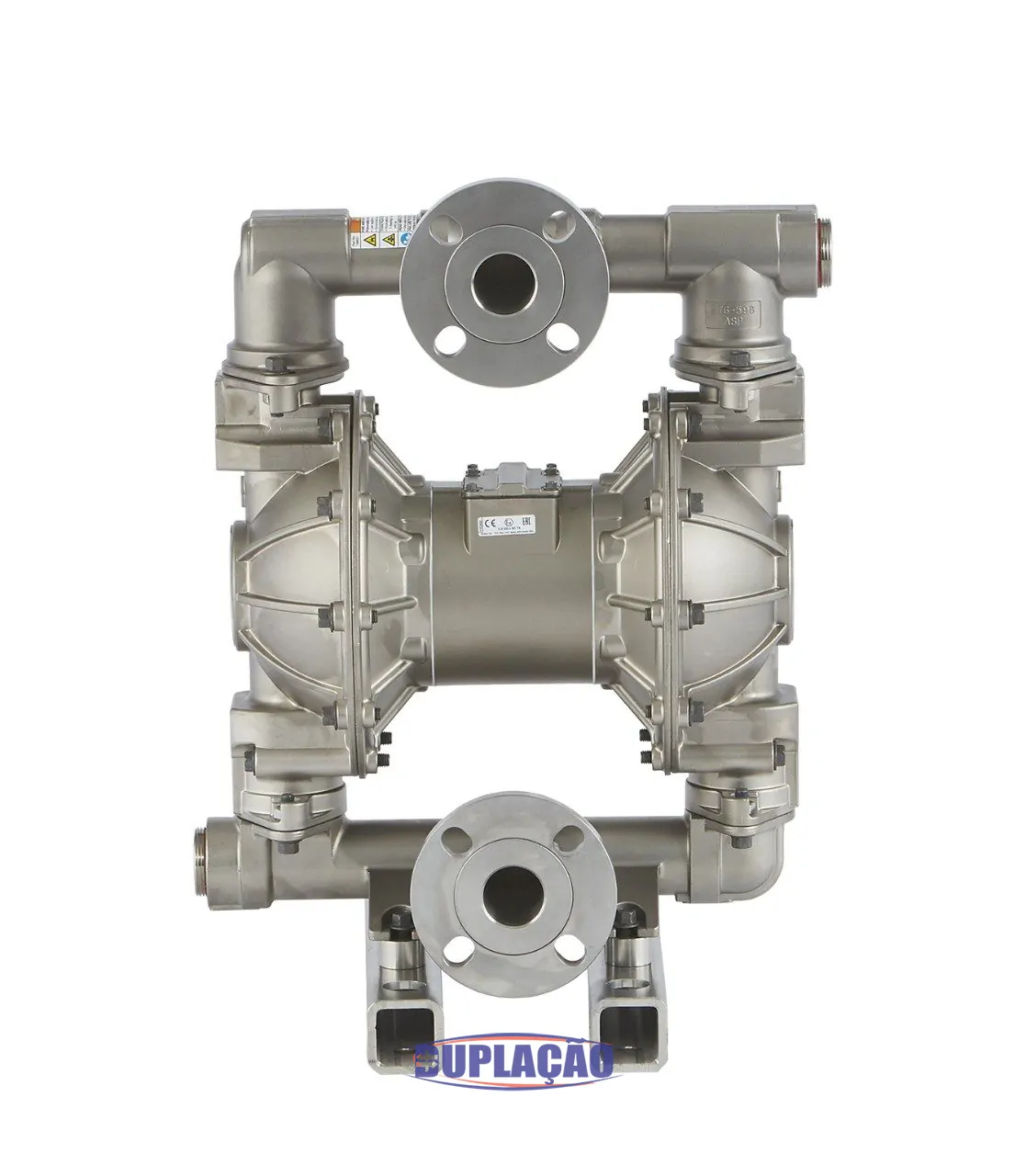

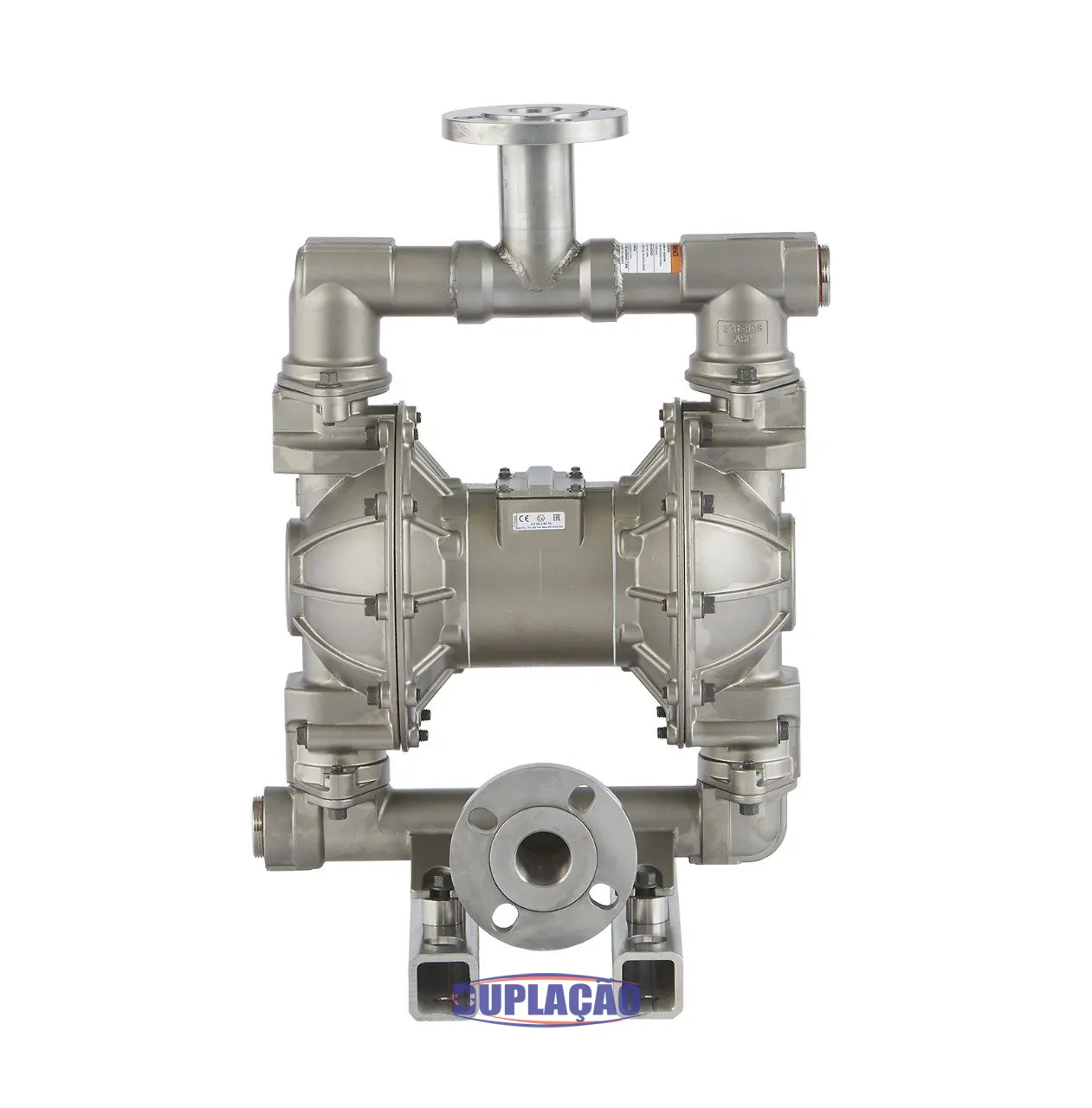

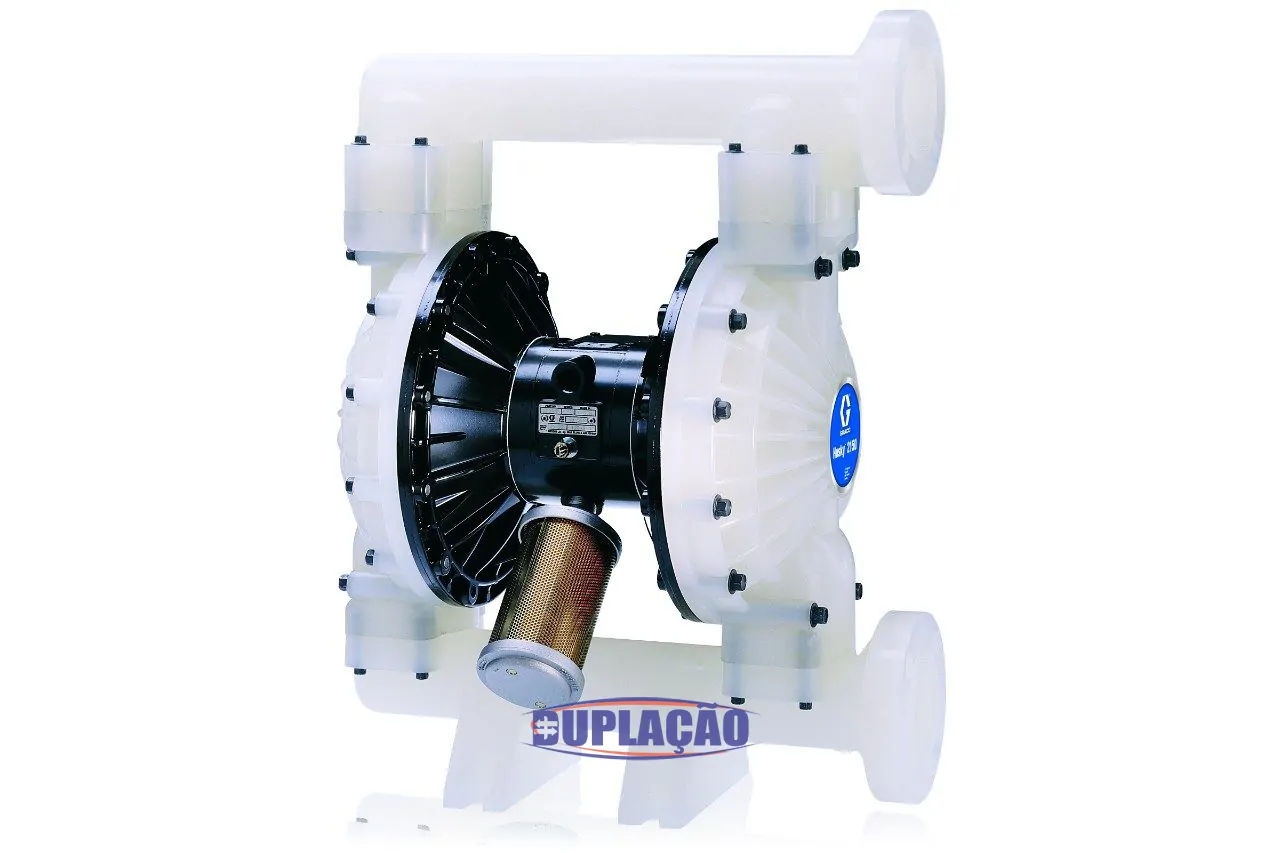

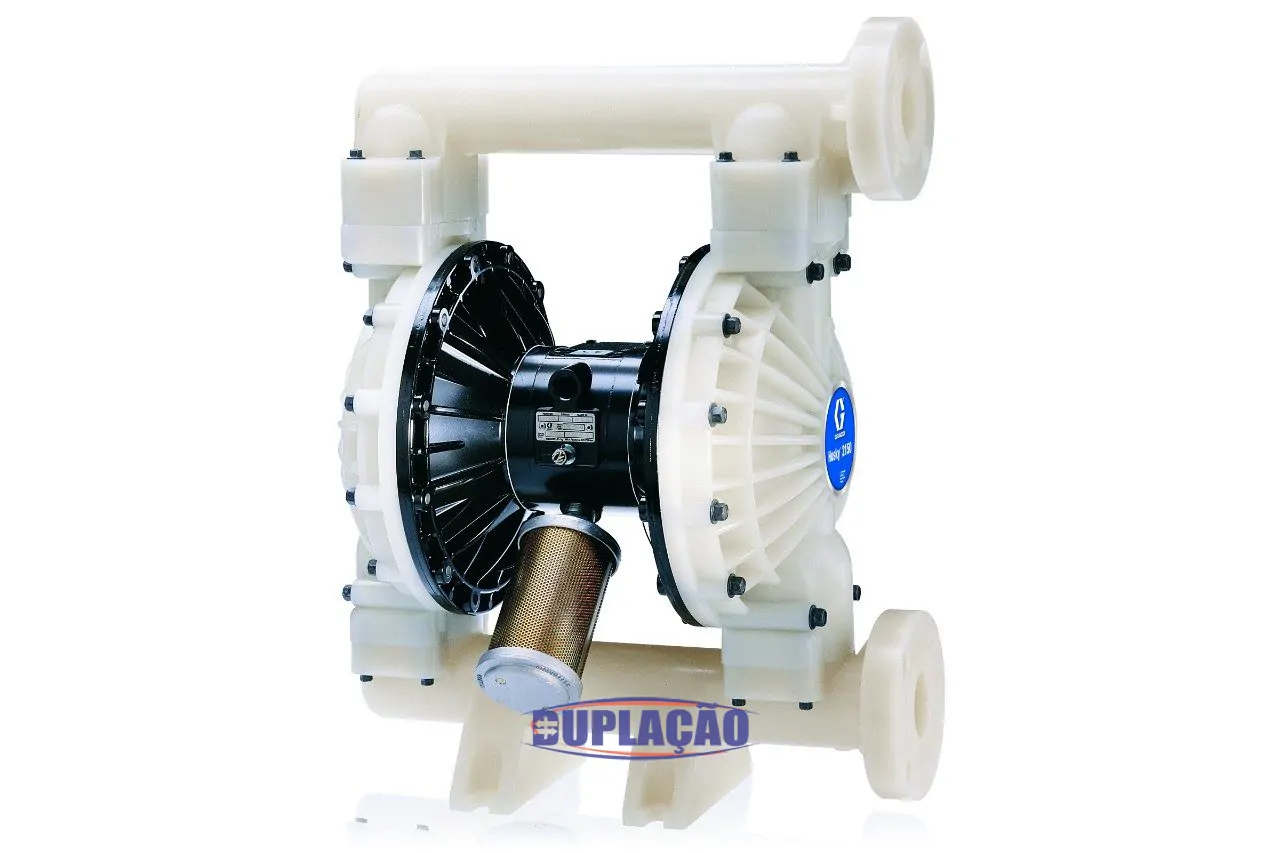

The Husky 1590 has a 38.1 mm connection (1.5 in.) And is available in aluminum, polypropylene and stainless steel.
This 38.1 mm double diaphragm pump (1-1/2 in.) Offers a high credibility and patented closed central air valve that can be operated online and an epoxy-covered air section for adverse environmental conditions.
The Husky 1590 double diaphragm pneumatic pump offers a high credibility and patented closed central air valve that can be repaired into operation and an epoxy -coated air section for adverse environmental conditions.
Advantages of Double Husky 1590 Double Diaphragm Pumps
Durability diaphragm five times larger than other diaphragm pumps in the category;
Offers material expansion to deal with unlimited applications;
Less parts than the others and externally accessible air valve, allowing quick and easy maintenance without the need to remove the diaphragm pump.
Available in Atex configuration;
| Overview | |
| Maximum fluid pressure |
100 gpm (378,5 L/min)
|
| Maximum fluid output pressure |
120 psi (8,4 bar, 0,84 MPa)
|
| Maximum size of pumping solids |
3/16 pol. (4,8 mm)
|
| Cycle fluid displacement |
0, 5 g (1.9 liters)
|
Husky 1590 - Performance
