6.35 mm (0.25 inch) positive displacement double diaphragm pump.
This 6.35 mm (1/4 inch) dual positive displacement dual diaphragm pump offers PTFE and Santoprene diaphragms for improved performance, and is available in polypropylene, ground point acetal and PVDF.

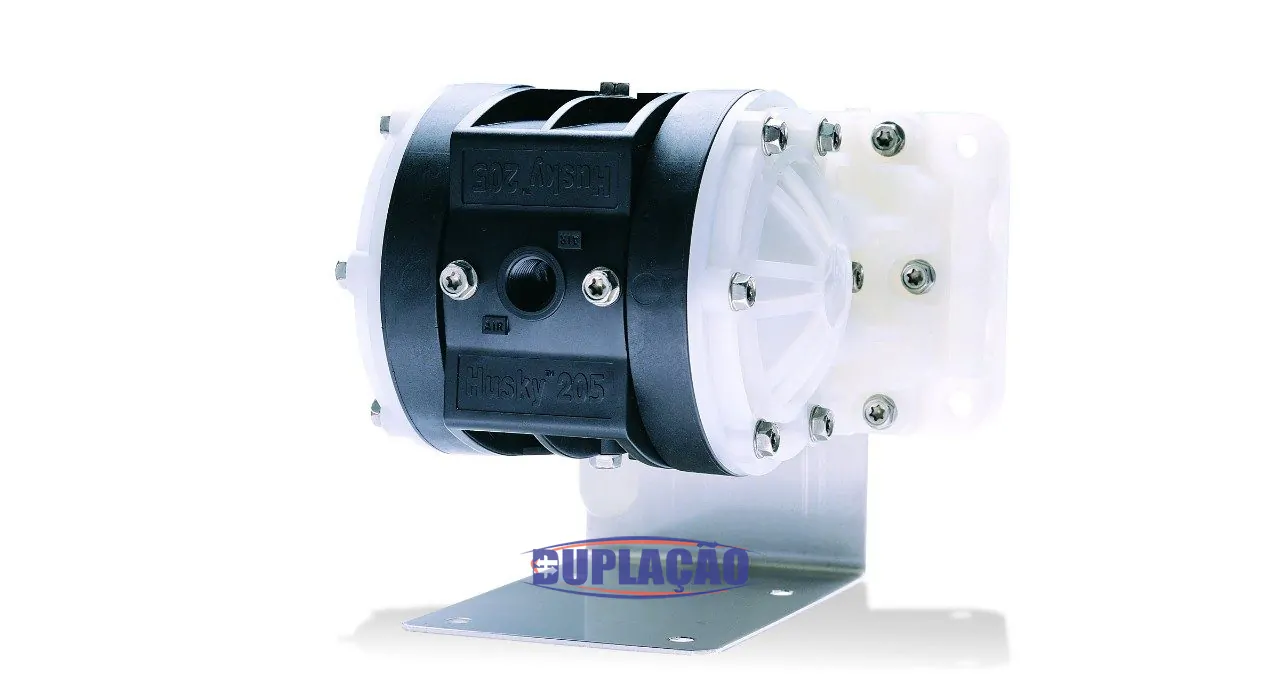

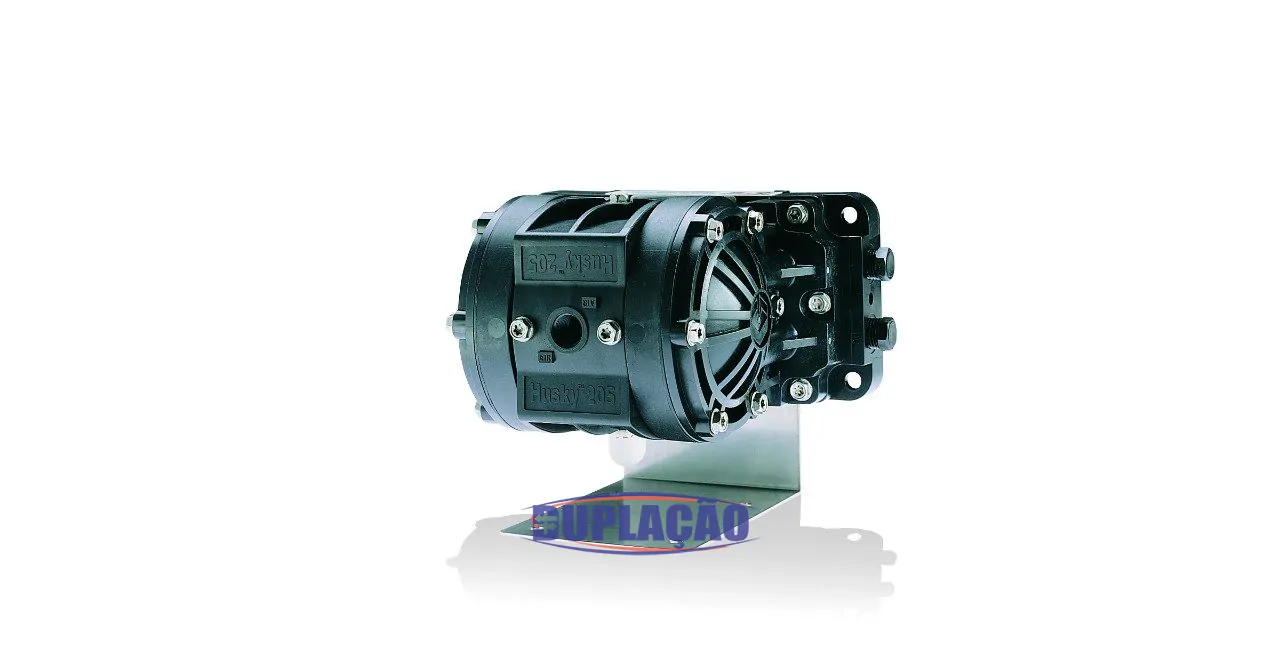

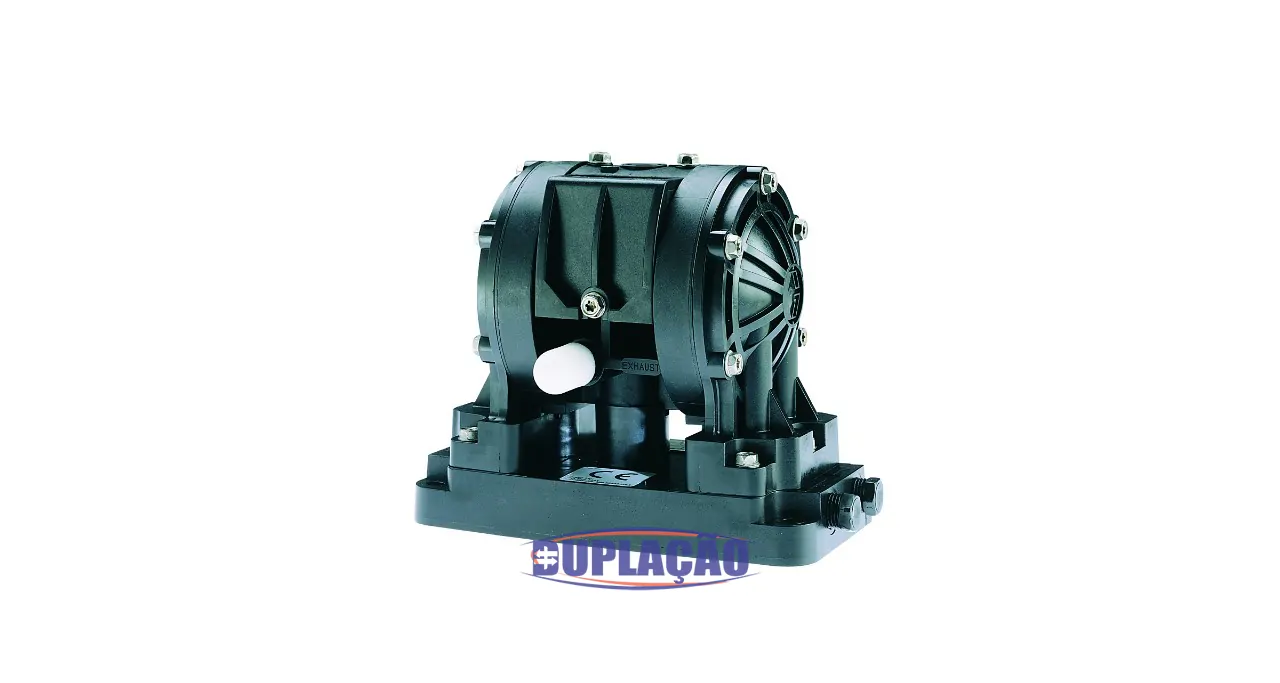

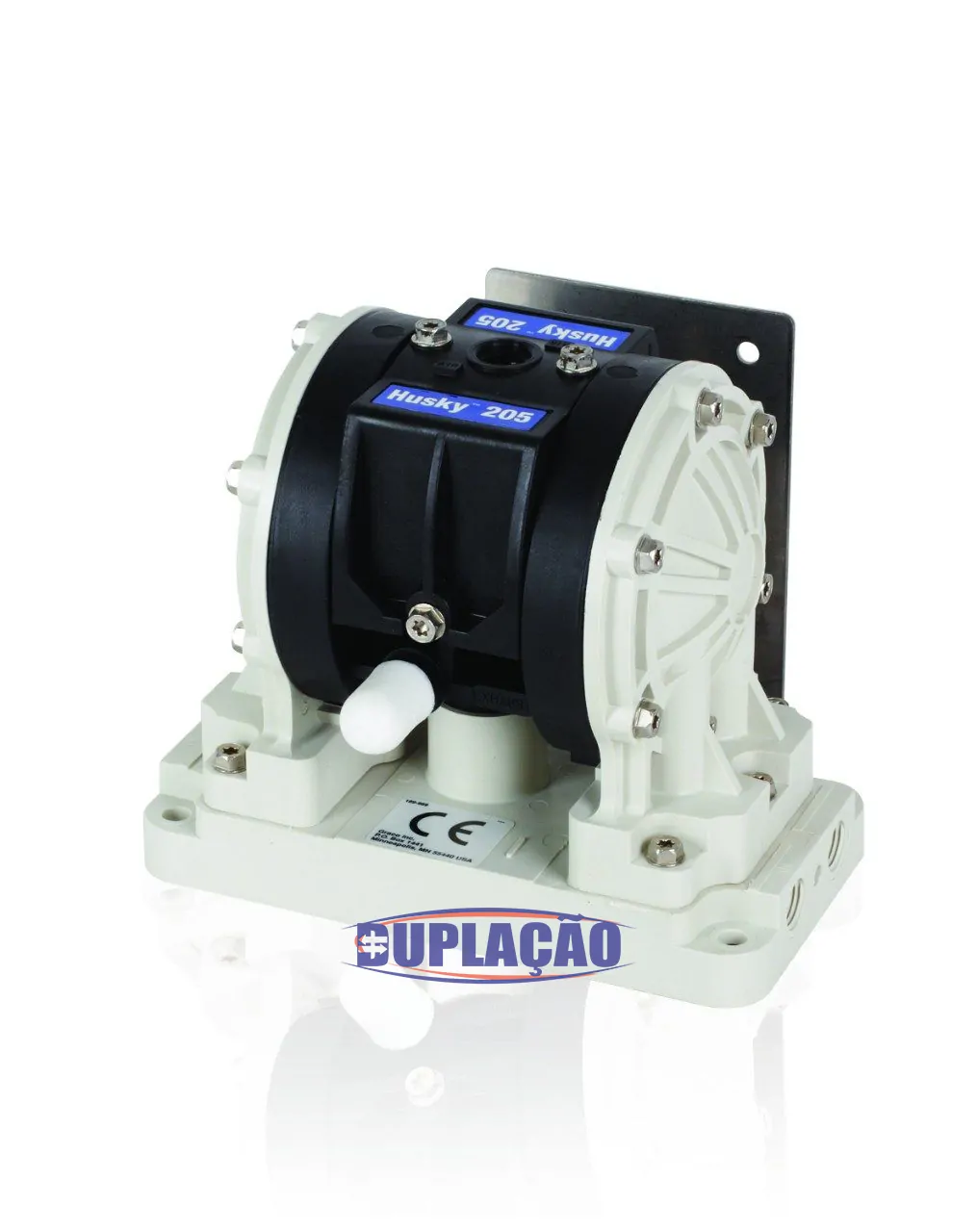

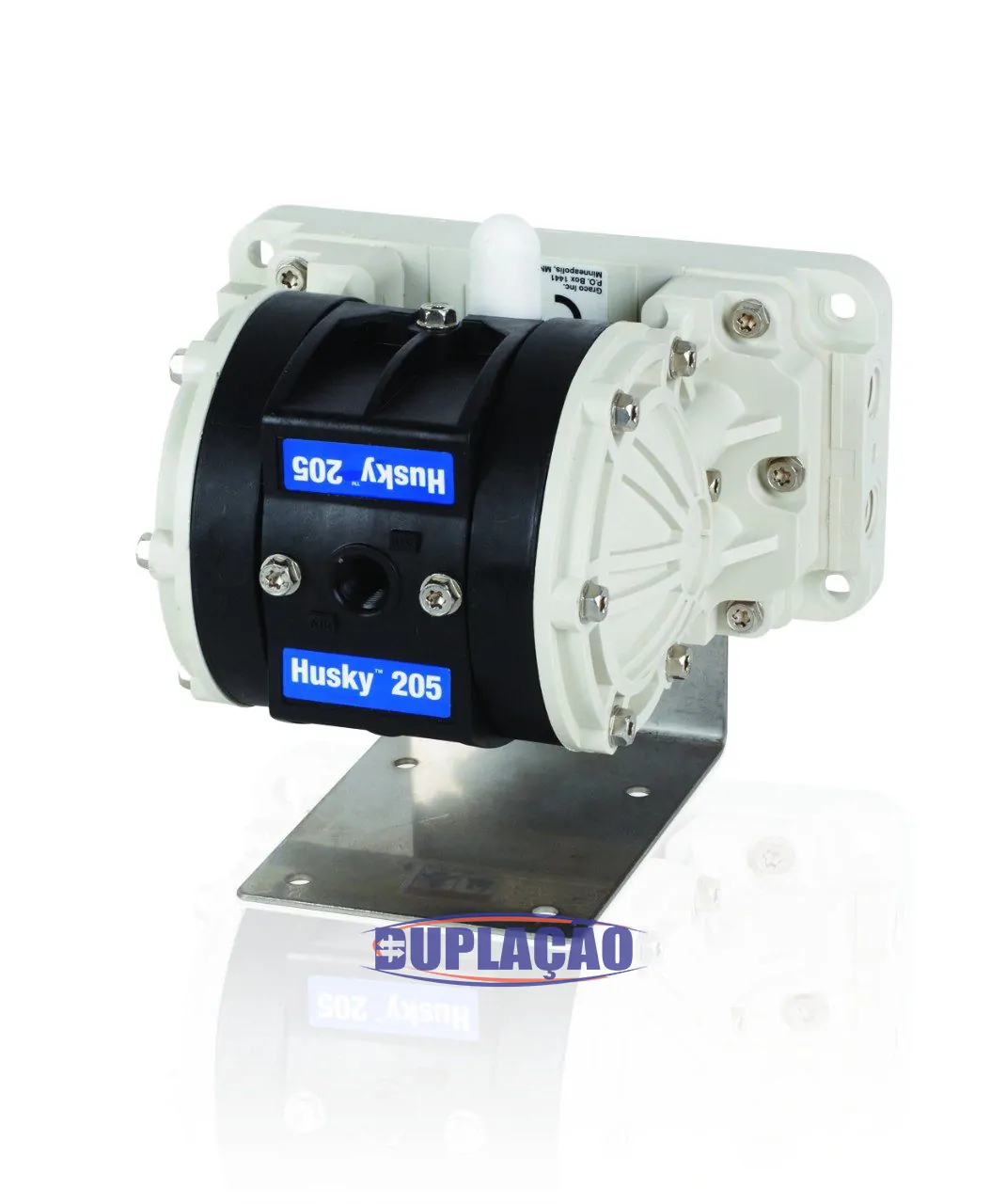

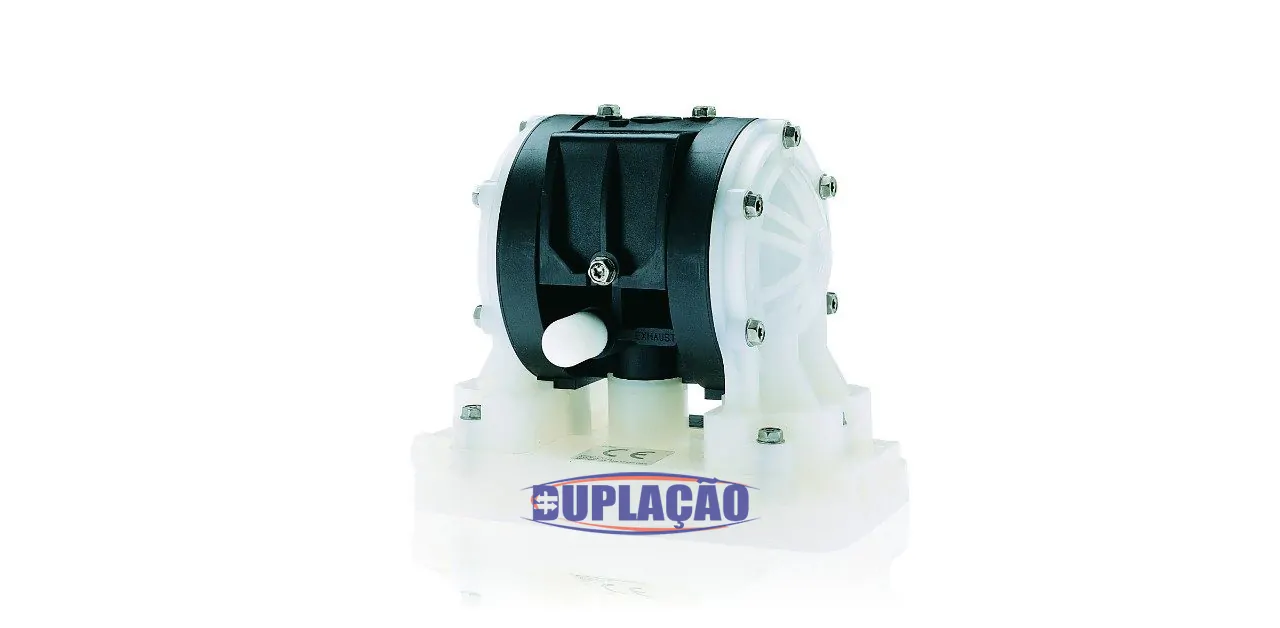

The Husky 205 pneumatic diaphragm pump offers spring-loaded check valves for optimal priming in any mounting configuration.
Husky 205 – Advantages of double diaphragm pumps
True format PTFE and Santoprene diaphragms for better performance.
Spring retention allows the diaphragm pump to work in any direction.
Interchangeable intake and exhaust.
Remote control option using an external controller.
Overview
Maximum fluid pressure 5.0 gpm (18.9 L/min)
Maximum fluid outlet pressure 100 psi (7 bar, 0.7 MPa)
Maximum pumpable solids size 0.06 in. (1.5mm)
Fluid displacement per cycle 0.012 g (0.045 liters)

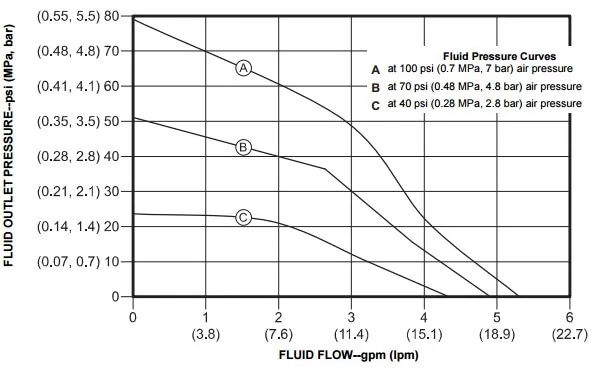

Husky 205 – Performance
