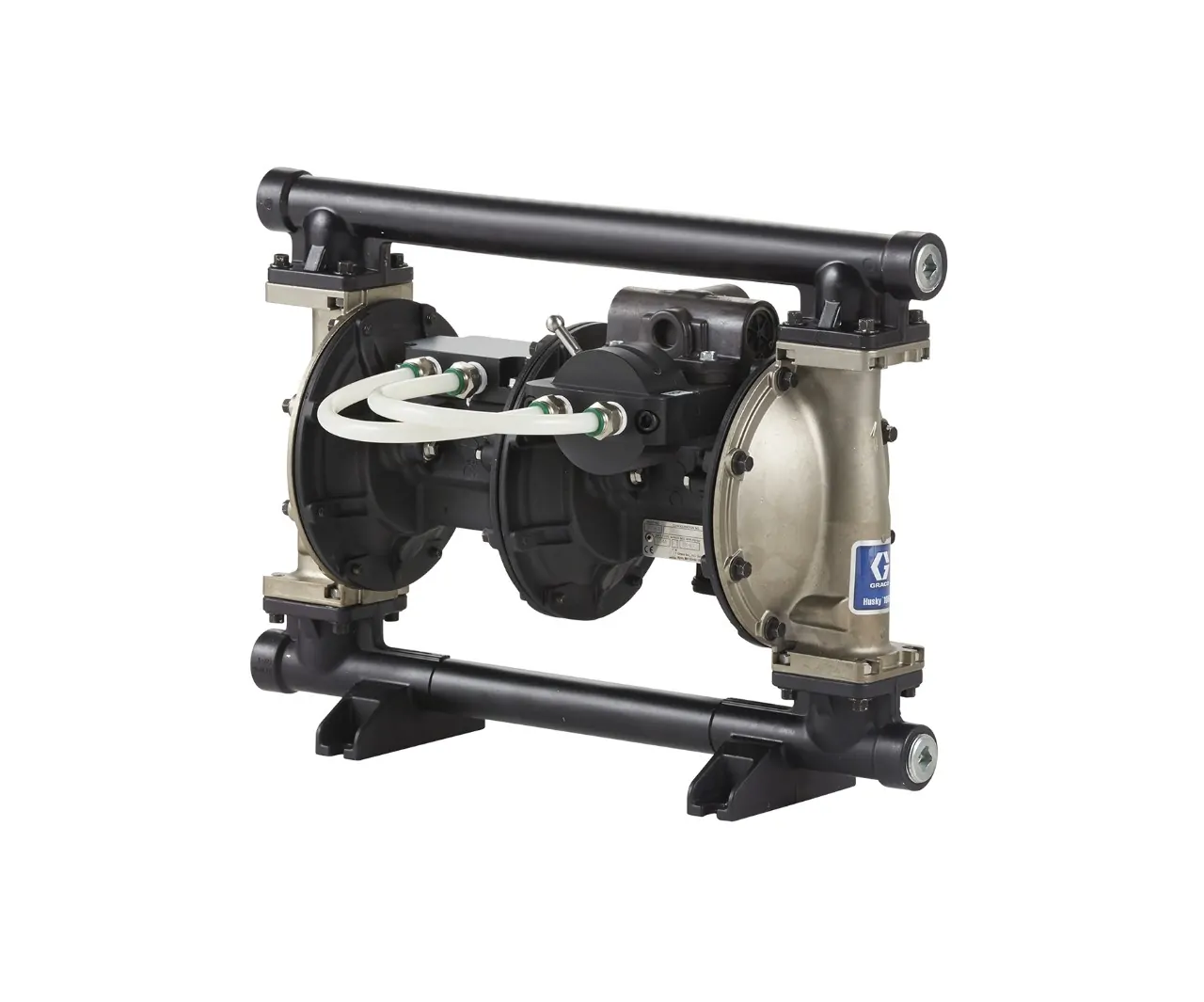

The Husky 1050HP has a 25.4 mm (1 in.) connection and is available in aluminum and stainless steel. Switch between low or high pressure operating modes via the Graco Low – High Pressure Mode Valve.
It is the first pump on the market that allows users to choose between high or low pressure operating modes through Graco's low-high pressure mode valve. High pressure operation is not always necessary, so switch to low pressure mode to reduce air consumption by up to 50%. These features, combined with the quality and reliability of our Husky standard diaphragm pump design, make this pump the only high pressure diaphragm pump on the market.
Husky 1050HP - Advantages of double diaphragm pumps
Increases fluid pressure without compromising flow;
The low-high pressure mode valve allows you to operate the pump as a high pressure air operated diaphragm pump.
Same replacement parts as Husky 1050 diaphragm pump.
Overview
| Maximum fluid flow in high pressure mode |
50 gpm (189 L/min)
|
| Maximum fluid output pressure |
125 psi (17,2 bar, 1,72 MPa)
|
| Maximum size of pumping solids |
1/8 pol. (3,2 mm)
|
| Cycle fluid displacement |
0, 2 g (0.76 liters)
|
Husky 1050HP - Performance
