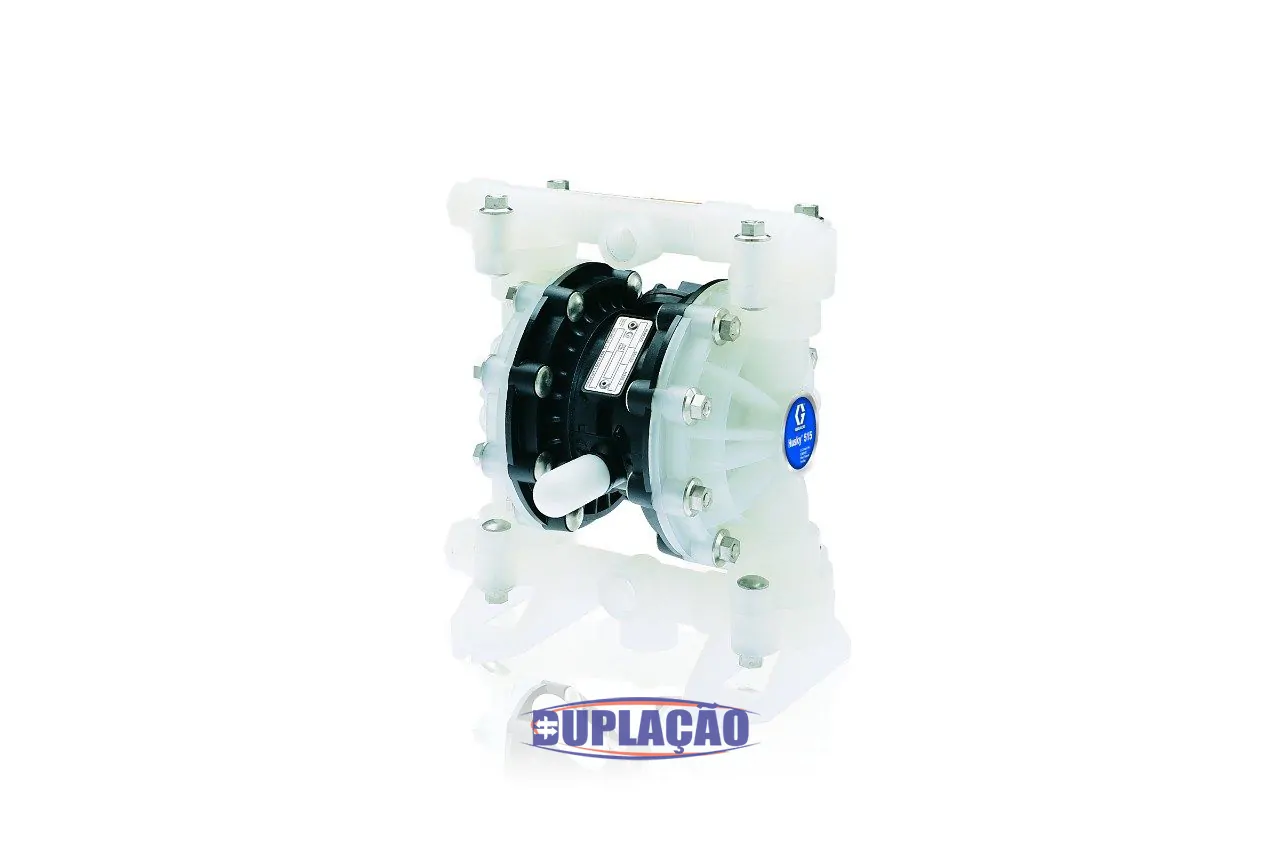

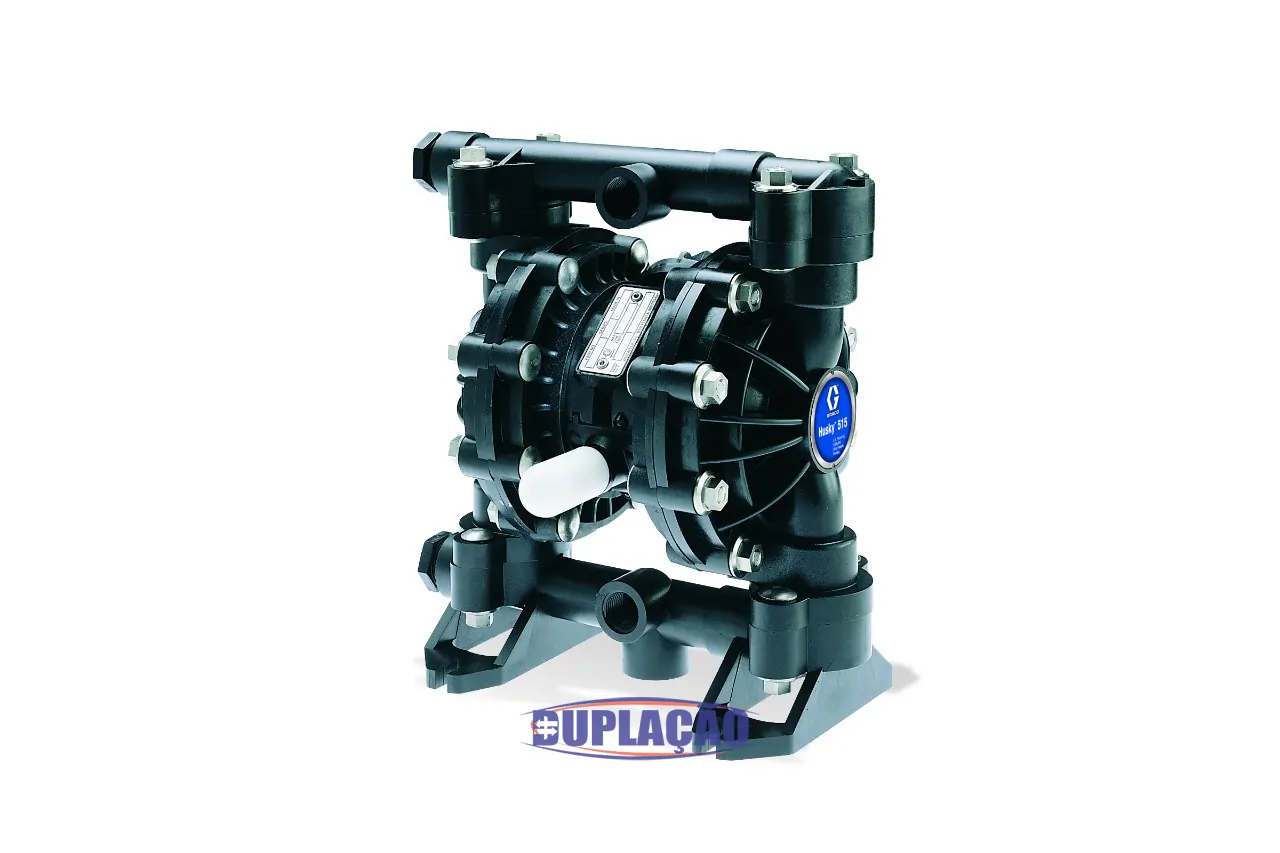

Double positive displacement diaphragm pump of 1/2 inch
The Husky 515 has a 12.7 mm connection (1/2 in.) And is available in polypropylene, acetal and PVDF.
The 12.7 mm (1/2 inch) double Husky 515 diaphragm pump is at a pressure of only 20 psi (0.14 MPa, 1.4 bar) and is available in grounding, polypropylene and PVDF acetal construction materials.
The Husky 515 double diaphragm pneumatic pump has a low pulsation valve without a smooth and quick change.
The fluid breadcrumbs eliminates leaks, making Husky safer and of high reliability.
Husky 515 - Advantages of double diaphragm pumps
Exit and center doors options;
No mechanical prohibition for leaks or failures;
Silent operation of less than 85 DBA with remote silencer to further reduce the noise;
Easy maintenance of ball and air valve controls;
It works with only 20 psi (1.4 bar, 0.14 MPa);
Collector divided to pump different fluid without mixing them;
| Overview | |
| Maximum fluid pressure |
15 gpm (57 L/min)
|
| Maximum fluid output pressure |
100 psi (7 bar, 0,7 MPa)
|
| Maximum size of pumping solids |
3/32 pol. (2,5 mm)
|
| Cycle fluid displacement |
0, 04 g (0.15 liters)
|
Husky 515 - Performance
