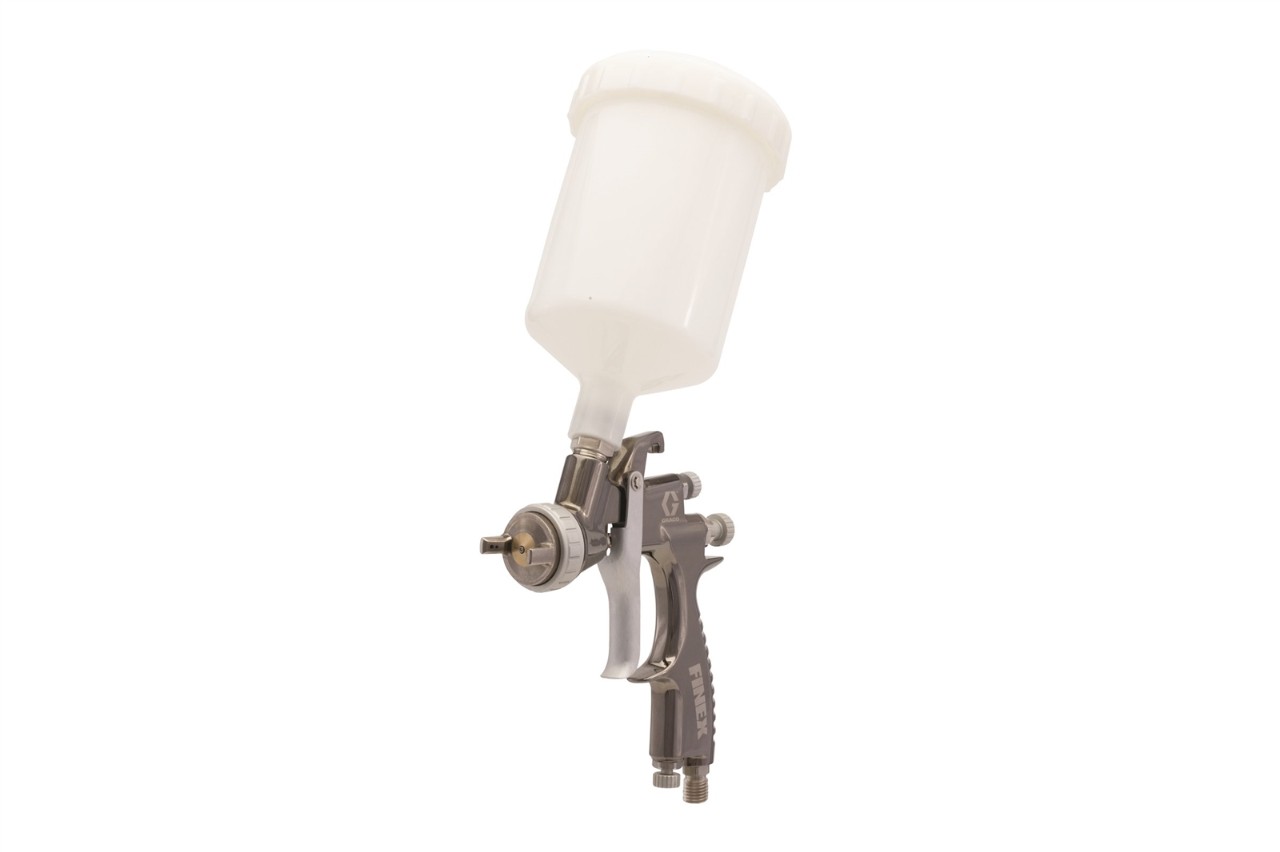

The Finex spray gun's lightweight, balanced design offers a more affordable spraying option. Available in gravity feed or pressure feed gun options and in HVLP or conventional technology.
| Pistol activation | manual |
|---|---|
| Trigger lock | No blocking |
| Includes | Air cap, Needle set, Nozzle, Tool kit, Cup |
| Compatible material | Epoxy, High solids, Latex, Multicomponent, Sealants, Solvent-based, Urethane, Water-based |
| Body material | Metallic |
| Model | Finex |
| Spray pattern | Plana |
| Gun weight (lb) | 1,2 |
| Gun weight (oz) | 19,05 |
| Wet parts | Aluminum, Stainless steel, Engineering plastic |
| Pistol included | 1 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum fluid working pressure (MPa) | 0.69 |
| Maximum air pressure (psi) | 100 |
| Maximum fluid pressure (psi) | 100 |
| Maximum fluid working pressure (psi) | 100 |
| Maximum inlet air pressure (MPa) | 0.7 |
| Maximum inlet air pressure (psi) | 100 |
| Maximum fluid pressure (MPa) | 0.7 |
| Air inlet size (in.) | 1/4 |
| Fluid inlet size (in.) | 3/8 |
| Fluid Orifice Size (in.) | 0,071 |
| Maximum fluid temperature (°F) | 109 |
| Type | Spray gun |
| Type of fluid inlet thread | NPSM |
| Type of power | Standard gravity feed |
| Applicator type | Manual |
| Trigger type | Two fingers |
| Pistol type | Conventional pistol |
| Product type | Spray gun |
| Type of spray | Air sprayer |
| Purge type | Non-bleeder |
| Inlet thread type | NPSM |
| Type of technology | Conventional |
| Pistol activation | manual |
| Trigger lock | No blocking |
| Includes | Air cap, Needle set, Nozzle, Tool kit, Cup |
| Compatible material | Epoxy, High solids, Latex, Multicomponent, Sealants, Solvent-based, Urethane, Water-based |
| Body material | Metallic |
| Model | Finex |
| Spray pattern | Plana |
| Gun weight (g) | 540 |
| Gun weight (kg) | 0,54 |
| Gun weight (oz) | 19,05 |
| Wet parts | Aluminum, Stainless steel, Engineering plastic |
| Pistol included | 1 |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum fluid working pressure (MPa) | 0.69 |
| Maximum fluid working pressure (bar) | 6.9 |
| Maximum air pressure (bar) | 7 |
| Maximum air pressure (kPa) | 700 |
| Maximum air pressure (psi) | 100 |
| Maximum fluid pressure (bar) | 7 |
| Maximum fluid pressure (kPa) | 700 |
| Maximum fluid pressure (psi) | 100 |
| Maximum fluid working pressure (psi) | 100 |
| Maximum inlet air pressure (MPa) | 0.7 |
| Maximum inlet air pressure (bar) | 7 |
| Maximum inlet air pressure (kPa) | 700 |
| Maximum inlet air pressure (psi) | 100 |
| Maximum fluid pressure (MPa) | 0.7 |
| Air inlet size (cm) | 0.635 |
| Air inlet size (mm) | 6.35 |
| Air inlet size (in.) | 1/4 |
| Fluid inlet size (cm) | 0.9525 |
| Fluid inlet size (mm) | 9.525 |
| Fluid inlet size (in.) | 3/8 |
| Fluid hole size (cm) | 0.18 |
| Fluid hole size (mm) | 1.8 |
| Fluid Orifice Size (in.) | 0,071 |
| Maximum fluid temperature (°C) | 43 |
| Type | Spray gun |
| Type of fluid inlet thread | NPSM |
| Type of power | Standard gravity feed |
| Applicator type | Manual |
| Trigger type | Two fingers |
| Pistol type | Conventional pistol |
| Product type | Spray gun |
| Type of spray | Air sprayer |
| Purge type | Non-bleeder |
| Inlet thread type | NPSM |
| Type of technology | Conventional |
