Innovative series of compact cylinders for long strokes or heavy-duty applications, with oversized guides and rods as standard. The first on the market with adjustable pneumatic damping as standard, without increasing dimensional dimensions. With wheelbases, centering diameters and rods in accordance with ISO 15552 standards.
Models

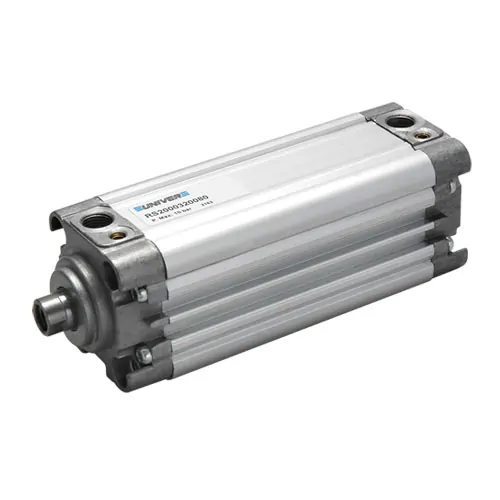

RS – STRONG Compact Pneumatic Cylinders centering diameter between axles and rods – ø32-100mm – SERIES MAGNETICS
Other Available Versions: Tandem, Tandem 2 Positions, Tandem Contraposed, Tandem Common Rod.
Character
Standard: ISO 15552, ISO 6431;
Work pressure: 1,5 ÷ 10 bar;
Room temperature: -20°C ÷ + 80°C ;
Fluent: Filtered air, with or without lubrication;
Heads: Cast aluminum at pressure;
Shirt: Anodized aluminum;
Piston: Aluminum;
Haste: Chrome steel, stainless steel on request;
We suffer from guide: Acetallic resin;
Piston together: NBR;
Compass Guide Rod: Acetallic resin;
Protector: NBR;
Shock absorbers: Adjustable pneumatic (original series standard);
