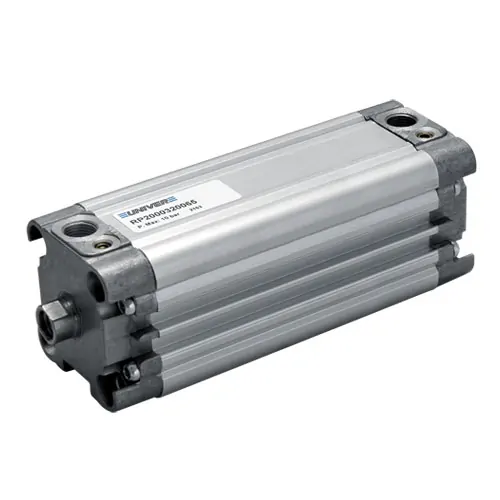

Cylinders with compact dimensions with Ø 16 ÷ 63 in accordance with UNITOP recommendations (RP series) are also available in non-rotating version and with elongated piston. This product, the first made with adjustable pneumatic damping, without variations in size compared to an undamped equivalent, allows a significantly higher working speed and a reduction in acoustic pollution.
Models
RP – UNITOP Compact Pneumatic Cylinders – ø16-63mm – STANDARD MAGNETIC
Other Available Versions: Tandem, Tandem 2 Positions, Tandem Contraposed, Tandem Common Rod.
Character
Standard: UNITOP
Work pressure: 1,5 ÷ 10 bar;
Room temperature: -20°C ÷ + 80°C ;
Fluent: Filtered air, with or without lubrication;
Heads: Cast aluminum at pressure;
Shirt: Anodized aluminum;
Piston: Aluminum;
Haste: Chrome steel, stainless steel on request;
We suffer from guide: Acetallic resin;
Piston together: NBR;
Compass Guide Rod: Acetallic resin;
Protector: NBR;
Shock absorbers: Adjustable pneumatic (original series standard);
