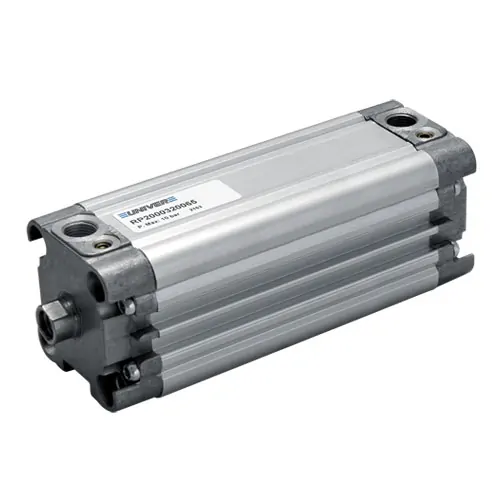

ISO 21287 Compact Cylinder - RM Series

Cylinders with compact dimensions with Ø 16 ÷ 100 in accordance with ISO 21287 recommendations with ISO wheelbase (RM series), are also available in non-rotating version and with elongated piston. This product, the first to be made with adjustable pneumatic damping, with no size variations compared to a non-damped equivalent, allows for a significantly higher working speed and a reduction in noise pollution.

Request quote

Description

MODELS

RM - Compact Pneumatic Cylinders ISO 21287 - ø16-100mm - MAGNETIC SERIES

Other Available Versions: Tandem, 2 Position Tandem, Counterposed Tandem, Common Rod Tandem.

FEATURES

Pattern: ISO 21287
Work pressure: 1,5 ÷ 10 bar;
Room temperature: -20°C ÷ + 80°C ;
Fluid: Filtered Air, With or Without Lubrication;

Heads: Die-cast aluminum;
Shirt: Anodized aluminium;
Piston: Aluminum;
Haste: Chrome Steel, Stainless Steel on Request;
We suffer from Guide: Acetalic Resin;
Piston Gaskets: NBR;
Compass Guide Rod: Acetalic Resin;
protector: NBR;
Shock absorbers: Adjustable Tires (Original UNIVER series standard);
