The effective alternative to traditional pressure vessels and standard pneumatic diaphragm pumps
| Application | Circulation |
|---|---|
| Collector Configuration | Center hole |
| Power supply | Ar |
| Lubricated materials | Aluminum, Stainless steel |
| Material | Aluminum |

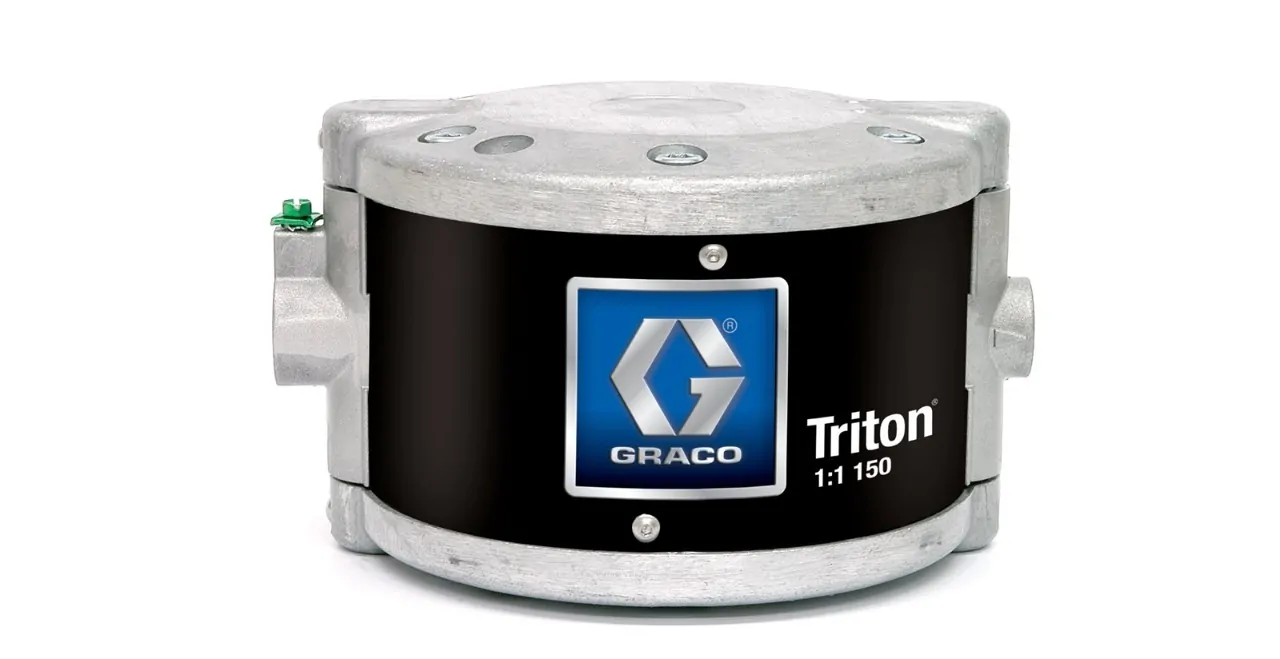

| Model | Triton |
| Standards met | ATEX, CE |
| Weight (lbs) | 9 |
| Maximum air pressure (psi) | 115 |
| Maximum fluid pressure (psi) | 115 |
| Pump ratio | 1:1 |
| Air inlet size (in.) | 1/4 |
| Fluid inlet size (in.) | 3/4 |
| Fluid outlet size (in.) | 3/8 |
| Maximum Flow Rate (GPM) | 8,5 |
| Maximum operating temperature (°F) | 176 |
| Minimum operating temperature (°F) | 50 |
| Type | Pneumatic diaphragm pumps |
| Type of fluid inlet thread | NPT |
| Fluid outlet thread type | NPT |
| Inlet thread type | NPT |
| Application | Circulation |
| Collector Configuration | Center hole |
| Power supply | Ar |
| Lubricated materials | Aluminum, Stainless steel |
| Material | Aluminum |
| Model | Triton |
| Standards met | ATEX, CE |
| Maximum air pressure (bar) | 8 |
| Maximum air pressure (psi) | 115 |
| Maximum fluid pressure (bar) | 8 |
| Maximum fluid pressure (psi) | 115 |
| Pump ratio | 1:1 |
| Air inlet size (in.) | 1/4 |
| Fluid inlet size (mm) | 19.05 |
| Fluid inlet size (in.) | 3/4 |
| Fluid outlet size (mm) | 9.525 |
| Fluid outlet size (in.) | 3/8 |
| Maximum flow rate (L/min) | 32 |
| Maximum operating temperature (°C) | 80 |
| Minimum operating temperature (°C) | 10 |
| Type | Pneumatic diaphragm pumps |
| Type of fluid inlet thread | NPT |
| Fluid outlet thread type | NPT |
| Inlet thread type | NPT |
