As bombas pneumáticas de diafragma são equipamentos eficientes que podem ser aplicados no bombeamento de produtos de baixa a alta viscosidade e até mesmo de produtos químicos. Graças às suas características, esse equipamento é uma das melhores alternativas para transferência de fluidos viscosos, inflamáveis, pastosos, corrosivos, abrasivos, e muito mais.
A estrutura dessa bomba permite que ela consiga bombear fluidos com a presença de sólidos em suspensão sem o risco de danos aos equipamentos.
Entretanto, ainda que seja um equipamento robusto, assim como qualquer outro dispositivo utilizado na indústria, ela também está sujeita a sofrer com o desgaste e danos a determinadas peças. A boa notícia é que é possível encontrar peças de reposição de qualidade, como as oferecidas pela Versamatic.
Quais são os principais componentes da bomba pneumática de diafragma?
A bomba pneumática de diafragma é um equipamento simples, mas que apresenta diversos componentes e sua estrutura para conseguir entregar produtividade e eficiência. Veja a seguir os principais componentes de uma bomba desse tipo.
Componentes da parte aérea
A parte aérea da bomba pneumática de diafragma é composta pelos seguintes componentes:
- Câmara de ar ou câmera interna, responsável por manter a vedação juntamente com os diafragmas durante a operação da bomba.
- Bloco Central intermediário, responsável por guiar o eixo do diafragma durante a operação.
- Biela do eixo principal, que mantém conectados os diafragmas.
- Esferas de válvula, muito importantes no bombeamento de fluidos viscosos, contribuindo para o assentamento rápido desse fluido.
- Silenciador, componente que ajuda a reduzir a emissão de som emitido pela sua bomba pneumática de diafragma.
Componentes de fluido
- Coletor de sucção cuja função é criar um caminho e proporcionar uma vedação eficiente.
- Câmera de fluidos externos, e se relaciona com o trajeto exercido pelo fluido durante o bombeamento. Essa câmera ajuda a criar um espaço vazio para que o fluido seja atraído e empurrado durante a operação da sua bomba.
- Diafragmas, se tratando do componente mais importante da sua bomba, eles são responsáveis por vedar em duas frentes. Contando com ajuda de compressão causada pela câmara externa, ele consegue evitar o vazamento de fluídos na circunferência externa e no furo central do diafragma.

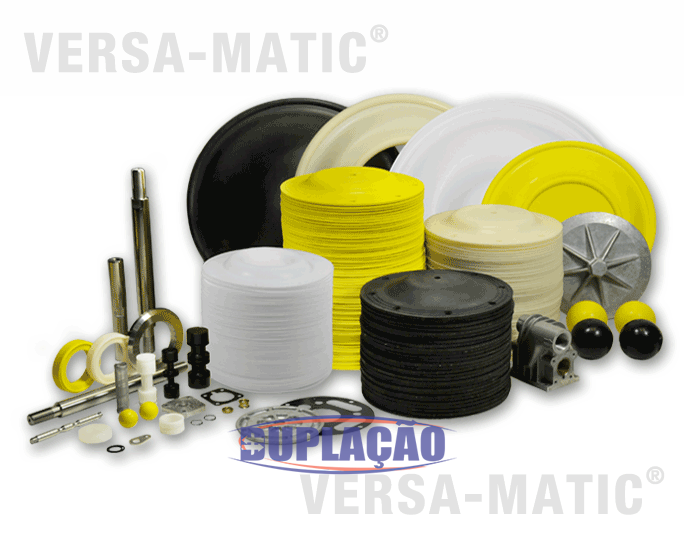

Caso a sua bomba apresente qualquer tipo de problema, é possível substituir os componentes através de peças de qualidade, como as que são oferecidas pela Versamatic.
Veja a seguir a lista de compatibilidade dessas peças de reposição de acordo com o modelo da bomba:
| E1AA2R229C-B- |
| E1AA5T559C-B- |
| E1AA6X669C-B- |
| E1PP5T5T9C |
| E1PP6X669C |
| E1SA2R229C-B-ATEX |
| E1SA5T559C-B-ATEX |
| E1SA6X669C-B-ATEX |
| E2AA2R220C-B-ATEX |
| E2AA5T550C-B-ATEX |
| E2AA6X660C-B-ATEX |
| E2PA2D229C |
| E2PA5T5T9C |
| E2PA6D669C |
| E2SA2R220C-B-ATEX |
| E2SA5T5S0C-B-ATEX |
| E2SA6X660C-B-ATEX |
| E3AA2R220C-B-ATEX |
| E3AA5T550C-B-ATEX |
| E3AA6X660C-B-ATEX |
| E3PP6X659A |
| E3SA2D220C-B-ATEX |
| E3SA6X660C-B-ATEX |
| E4AA2R220-B-ATEX |
| E4AA5T5A0-B-ATEX |
| E4AA6X660-B-ATEX |
| E4PA6X669 |
| E4SA2R220-B-ATEX |
| E4SA6X660-B-ATEX |
| E4SA6X660-B-ATEX |
| E5AA2R229C-ATEX |
| E5AA5T559C-ATEX |
| E5AA6X669C-ATEX |
| E5PP5T5T9C |
| E5PP6X669C |
| E5SA2R229C-ATEX |
| E5SA5T559C-ATEX |
| E5SA6X669C-ATEX |
| PN | Description |
| 031.V001.156 | Valve body Assy. (031.V001.156) |
| 031.V002.156 | Valve body Assy (031.V002.156) |
| 031.V003.156 | Valve body Assy (031.V003.156) |
| 031.V004.552 | Air valve (031.V004.552) |
| 031.V005.552 | Air valve (031.V005.552) |
| 031.V006.157 | Air Valve Assy (031.V006.157) |
| 095.V001.156 | Air Valve housing (095.V001.156) ALU |
| 095.V001.332 | Air Valve housing (095.V001.332) ALU NP |
| 095.V003.157 | Air valve housing (095.V003.157) ALU |
| 10-075 | Block (10-075) CERAMIC(SIC) |
| 170-111-115 | Hex head bolt (T170.111.115) ST STEEL |
| 171.079.115 | Socket head bolt (T171.080.115) STAINLESS STEEL |
| 171.092.115 | Socket head bolt (171.092.115) STAINLESS STEEL |
| 360.V001.360 | Gasket (360.V001.360) BUNA |
| 360.V001.465 | Gasket (360.V001.465) MP-2N |
| 360.V002.360 | Gasket (360.V002.360) BUNA |
| 360.V003.360 | Gasket (360.V003.360) BUNA |
| 476.V004.000 | Air Valve Kit (476.V004.000) |
| 476.V005.000 | Repair kit (T476.005.000) |
| 476.V006.000 | Repair kit (476.V006.000) |
| 476.V007.000 | Repair kit (476.V007.000) |
| 476.V008.000 | Repair kit (476.V008.000) |
| 476.V009.000 | Air valve kit (476.V009.000) |
| 476.V010.000 | Air valve kit (476.V010.000) |
| 476.V011.000 | Air valve kit (476.V011.000) |
| 476.V012.000 | Air valve kit (476.V012.000) |
| 476.V014.000 | Air valve kit (476.V014.000) |
| 476.V015.000 | Air valve kit (476.V015.000) |
| 476.V016.000 | Air valve kit (476.V016.000) |
| 476.V017.000 | Air valve kit (476.V017.000) |
| 476.V018.000 | Air valve kit (476.V018.000) |
| 476.V019.000 | Air valve kit (476.V019.000) |
| 476.V020.600 | Repait kit (476.V020.600) |
| 476.V021.600 | Repait kit (476.V021.600) |
| 476.V022.354 | Repair kit (476.V022.354) |
| 476.V022.356 | Repair kit (476.V022.356) |
| 476.V022.360 | Repair kit (476.V022.360) |
| 476.V022.363 | Repair kit (476.V022.363) |
| 476.V022.364 | Repair kit (476.V022.364) |
| 476.V022.365 | Repair kit (476.V022.365) |
| 476.V022.600 | Repair kit (476.V022.600) |
| 476.V023.600 | Repair kit (476.V023.600) |
| 476.V024.354 | Repair kit (476.V024.354) |
| 476.V024.360 | Repair kit (476.V024.360) |
| 476.V024.363 | Repair kit (476.V024.363) |
| 476.V024.364 | Repair kit (476.V024.364) |
| 476.V024.365 | Repair kit (476.V024.365) |
| 476.V024.600 | Repair kit (476.V024.600) |
| 476.V025.360 | Repair kit (476.V025.360) |
| 476.V025.363 | Repair kit (476.V025.363) |
| 476.V026.363 | Repair kit (476.V026.363) |
| 476.V026.600 | Repair kit (476.V026.600) |
| 476.V026.659 | Repair kit (476.V026.659) |
| 476.V027.000 | Air valve kit (476.V027.000) |
| 476.V028.000 | Air valve kit (476.V028.000) |
| 476.V029.000 | Air valve kit (476.V029.000) |
| 476.V030.000 | Air valve kit (476.V030.000) |
| 476.V031.659 | Repair Kit (476.V031.659) |
| 476.V033.659 | Repair kit (476.V033.659) |
| 476.V034.659 | Repair Kit (476.V034.659) |
| 476.V041.000 | Air valve kit (476.V041.000) |
| 476.V042.000 | Air valve kit (476.V042.000) |
| 476.V043.000 | Air valve kit (476.V043.000) |
| 476.V044.000 | Air valve kit (476.V044.000) |
| 476.V045.000 | Air valve kit (476.V045.000) |
| 476.V046.000 | Air valve kit (476.V046.000) |
| 476.V049.000 | Air valve kit (476.V049.000) |
| 476.V059.000 | Repair kit (476.V059.000) |
| 476.V060.000 | Repair kit (476.V060.000) |
| 476.V117.600 | Repair kit (476.V117.600) |
| 476.V129.000 | Air kit (476.V129.000) |
| 476.V140.354 | Repair kit (476.V140.354) |
| 476.V176.000 | Air valve kit (476.V176.000) |
| 476.V253.000 | Repair kit (476.V253.000) |
| 476.V255.354 | Repair kit (476.V255.354) |
| 476.V255.654 | Repair kit (476.V255.654) |
| 476.V388.354 | Repair Kit (476.V388.354) |
| 476.V389.354 | Repair kit (476.V389.354) |
| 476.V389.363 | Repair kit (476.V389.363) |
| 476.V389.671 | Repair kit (476.V389.671) |
| 476.V394.365 | Repair kit (476.V394.365) |
| 544.004.115 | Hex flange nut (544.004.115) STAINLESS STEEL |
| 545.009.110 | Hex nut (545.009.110) STAINLESS STEEL |
| 560.023.358 | O-Ring (560.023.358) POLYURETHANE |
| 560.101.358 | O-Ring (560.101.358) POLYURETHANE |
| 560.206.360 | O-Ring (560.206.360) BUNA |
| 670.V001.554 | Shaft retainer (670.V001.554) |
| 670.V002.554 | Shaft retainer (670.V002.554) |
| 675.037.080 | Retainer Ring (675.037.080) CARBON ST |
| 685.V001.120 | Shaft (685.V001.120) STAINLESS STEEL |
| 722.091.110 | Seat (722.091.110) STAINLESS STEEL |
| 722.091.150 | Seat (722.091.150) ALUMINUM |
| 722.091.600 | Seat (722.091.600) PTFE |
| 755.V001.148 | Bushing (755.V001.148) ALUMINIUM |
| 755.V002.000 | Sleeve Assy (755.V002.000) |
| 755.V003.000 | Sleeve Assy (755.V003.000) |
| 755.V004.000 | Sleeve Assy (755.V004.000) |
| 755.V005.148 | Bushing (755.V005.148) ALUMINUM |
| 755.V006.148 | Bushing (755.V006.148) ALUMINUM |
| 775.V001.000 | Spool Assy (775.V001.000) |
| 775.V002.000 | Spool Assy (775.V002.000) |
| 775.V003.000 | Spool Assy (775.V003.000) |
| 775.V004.000 | Spool Assy (775.V004.000) |
| 775.V005.000 | Spool Assy (775.V005.000) |
| 775.V006.000 | Spool Assy (775.V006.000) |
| 901.038.330 | Flat washer (901.038.330) |
| DRV1.25 BN KIT | Repair kit (DRV1.25 BN KIT) |
| DRV1.25 FG KIT | Repair kit (DRV1.25 FG KIT) |
| DRV1.25 ND KIT | Repair kit (DRV1.25 ND KIT) |
| DRV1.25 NE KIT | Repair kit (DRV1.25 NE KIT) |
| DRV1.25 VT KIT | Repair kit (DRV1.25 VT KIT) |
| DRV1.25 XL KIT | Repair kit (DRV1.25 XL KIT) |
| E100 | Air Valve Assy (E100) |
| E100A | Air Valve Housing E1 (E100A) PVDF |
| E100B ASY | Shaft (E100B ASY) ACETAL |
| E100BUB ASY | Valve spool Assembly (E100BUB ASY) |
| E100CT | Block (E100CT) BLACK CARBON |
| E100G | Block (E100G) CERAMIC(SIC) |
| E100H | Guide (E100H) CERAMIC(SIC) |
| E100J | Gasket (E100J) RUBBERIZED CORK |
| E101B | Shaft retainer (E101B) POLYPROPYLENE |
| E120A | Hex head bolt (E120A) STAINLESS STEEL |
| E120B | Hex head bolt (E120B) STAINLESS STEEL |
| E1A AV KIT | Air valve (E1A AV KIT) Repair kit |
| E1A F KIT | Repair kit (E1A F KIT) |
| E1A PV KIT | Air valve (E1A PV KIT) Repair kit |
| E1K F KIT | Repair kit (E1K F KIT) |
| E1P AV KIT | Air valve (E1P AV KIT) Repair kit |
| E1P F KIT | Repair kit (E1P F KIT) |
| E1P PV KIT | Air valve (E1P PV KIT) Repair kit |
| E1S F KIT | Repair kit (TE1 SF KIT) |
| E2/E3 A AV KIT | Air valve kit (E2/E3 A AV KIT) |
| E200 | Air valve (E200) |
| E200A | Air Valve Body (E200A) PVDF |
| E200B ASY | Spool Asy (E200B ASY) |
| E200CT | Air diverter (E200CT) |
| E200G | Air diverter (E200G) |
| E200H | Valve insert (E200H) |
| E200J | Gasket (E200J) BUNA |
| E200L | Staple retainer (E200L) |
| E201B-5 | O-Ring (E201B-5) BUNA |
| E201B-L ASY | Shaft retainer (E201B-L ASY) |
| E201B-R ASY | Shaft retainer (E201B-R ASY) |
| E201M-1 | O-Ring (E201M-1) BUNA |
| E201MB | Bushing (E201MB) |
| E202 ASY | Spool Asy (E202 ASY) |
| E203A | Shaft (E203A) STAINLESS STEEL |
| E235A | Hex head bolt (E235A) SST |
| E2A PV KIT | Air valve kit (E2A PV KIT) |
| E2-CMK-OE-TF-MB | Air valve kit (E2-CMK-OE-TF-MB) |
| E2-CMK-OE-TF-MC | Air valve kit (E2-CMK-OE-TF-MC) |
| E2P BN KIT | Repair kit (E2P BN KIT) |
| E2P ND KIT | Repair kit (E2P ND KIT) |
| E2P NE KIT | Repair kit (E2P NE KIT) |
| E2P TF KIT | Repair kit (E2P TF KIT) |
| E2P VT KIT | Repair kit (E2P VT KIT) |
| E2P XL KIT | Repair kit (E2P XL KIT) |
| E2S TF KIT | Repair kit (E2S TF KIT) |
| E2S9-XL/TF/SS | Repair kit (E2S9-XL/TF/SS) |
| E3A PV KIT | Air valve kit (E3A PV KIT) |
| E3-CMK-OE-RMC | Repair kit (E3-CMK-OE-RMC) |
| E3S-9-XL-KIT | Repair kit (E3S-9-XL-KIT) |
| E408BN | Seat (E408BN) BUNA |
| E408FG | Seat (E408FG) HYTREL |
| E408P | Seat (E408P) POLYPROPYLENE |
| E408XL | Seat (E408XL) SANTOPRENE |
| E412TES | O-Ring (E412TES) FEP/SILICON |
| E413BN | O-Ring (E413BN) BUNA |
| E413ND | O-Ring (E413ND) EPDM |
| E413TES | O-Ring (E413TES) FEP/SILICON |
| E413TF | O-Ring (E413TF) PTFE |
| E413VT | O-Ring (E413VT) FKM/VITON |
| E413XL | O-Ring (E413XL) SANTOPRENE |
| E4A AV KIT | Air valve kit (E4A AV KIT) |
| E4A PV KIT | Air valve kit (E4A PV KIT) |
| E4P VT KIT | Repair kit (E4P VT KIT) |
| E4P XL KIT | Repair kit (E4P XL KIT) |
| E4S F KIT | Repair kit (E4S F KIT) |
| E4SS BN KIT | Repair kit (E4SS BN KIT) |
| E4SS FG KIT | Repair kit (E4SS FG KIT) |
| E4SS NE KIT | Repair kit (E4SS NE KIT) |
| E4SS VT KIT | Repair kit (E4SS VT KIT) |
| E5 AV KIT | Air valve kit (E5 AV KIT) |
| E5 BN KIT | Repair kit (E5 BN KIT) |
| E5 F KIT | Repair kit (E5 F KIT) |
| E5 FG KIT | Repair kit (E5 FG KIT) |
| E5 NE/BN KIT | Repair kit (E5 NE/BN KIT) |
| E5 PV KIT | Air valve kit (E5 PV KIT) |
| E5 TF KIT | Repair kit (E5 TF KIT) |
| E5 VT KIT | Repair kit (E5 VT KIT) |
| E5 XL KIT | Repair kit (E5 XL KIT) |
| E500 | Air valve assembly (E500) |
| E500A | Valve body (E500A) |
| E500B ASY | Spool Assembly (E500B ASY) |
| E500BUB ASY | Spool Assembly (E500BUB ASY) |
| E500D ASY | End cap Assembly (TE500D Asy) |
| E500DUB ASY | End Cap (E500DUB ASY) ACETAL |
| E500E | O-Ring (E500E) BUNA |
| E500F | Clip (E500F) STAINLESS STEEL |
| E500G | Block (E500G) CERAMIC(SIC) |
| E500H | Guide (E500H) CERAMIC(SIC) |
| E500J | Gasket (E500J) RUBBER CORK |
| E502A | Shaft (E502A) CARBON STEEL |
| E502B | O-Ring (E502B) BUNA |
| E503A | Shaft (E503A) STAINLESS STEEL |
| E503B | O-Ring (E503B) BUNA |
| E503C | Pilot Spacer (E503C) ALUMINIUM |
| E503D | Snap ring (E503D) |
| E505BN | Diaphragm (E505BN) BUNA |
| E505F | Diaphragm (E505F) Fusion |
| E505FG | Diaphragm (TE505TPEFG) HYTREL |
| E505N | Diaphragm (E505N) NEOPRENE |
| E505ND | Diaphragm (E505ND) EPDM |
| E505TF | Diaphragm (E505TF) PTFE |
| E505VT | Diaphragm (E505VT) FKM/VITON |
| E505XL | Diaphragm (E505XL) SANTOPRENE |
| E510BN | O-Ring (E510BN) BUNA |
| E510ND | O-Ring (E510ND) EPDM |
| E510TES | O-Ring (E510TES) FEP/SILICON |
| E510TEV | O-Ring (E510TEV) FEP/VITON |
| E510TFG | Gasket (E510TFG) PTFE |
| E510VT | O-Ring (E510VT) FKM/VITON |
| E510XL | O-Ring (E510XL) SANTOPRENE |
| E5P BN KIT | Repair kit (E5P BN KIT) |
| E5P FG KIT | Repair kit (E5P FG KIT) |
| E5P NE/BN KIT | Repair kit (E5P NE/BN KIT) |
| E5P TF KIT | Repair kit (E5P TF KIT) |
| E5P VT KIT | Repair kit (E5P VT KIT) |
| E5P XL KIT | Repair kit (E5P XL KIT) |
| E5P XL/TF KIT | Repair kit (E5P XL/TF KIT) |
| E800D ASY | End cap (E800D ASY) |
| KE108 | Seat (KE108) PVDF |
| KE521 | Seat (KE521) PVDF |
| KV181TO | Piston (KV181TO) PVDF |
| KV240 | Seat (KV240) PVDF |
| KVM1.0 TF KIT | Repair kit (KVM1.0 TF KIT) |
| P24-102 | Shaft (P24-102) CARBON STEEL |
| P24-103 | Shaft (P24-103) STAINLESS STEEL |
| P24-103F | Shaft (P24-103F) STAINLESS STEEL |
| P24-104 | Shaft (P24-104) STAINLESS STEEL |
| P24-105 | Bushing (P24-105) BRASS |
| P24-106 | Pilot Spacer (P24-106) ALUMINIUM |
| P24-106P | Pilot Spacer (P24-106P) POLYPROPYLENE |
| P24-107 | O-Ring (P24-107) BUNA |
| P24-108 | Lock nut thin (P24-108) STAINLESS STEEL |
| P24-109 | Gasket (P24-109) MP2-N |
| P24-110 | Hex head bolt (P24-110) CARBON ST. (ZP) |
| P24-202 | Gasket (P24-202) THERMOSEAL C-4408 |
| P24-205 | Gasket (P24-205) FASERFLEX |
| P24-208 | Socket head bolt (P24-208) SST |
| P24-209 | Screw (P24-209) |
| P24-210 | Mesh Filter (P24-210) STAINLESS STEEL |
| P24-402 | Bushing Sleeve (P24-402) BRASS |
| P24-403 | O-Ring (P24-403) BUNA |
| P24-501 | Washer (P24-501) POLYPROPYLENE |
| P31-102 | Shaft (P31-102) CARBON STEEL |
| P31-103 | Shaft (P31-103) CARBON STEEL |
| P31-109 | Gasket (P31-109) MP2-N |
| P31-110 | Large clamp set (P31-110) |
| P31-110A | Clamp Large (P31-110A) CARBON STEEL |
| P31-110B | Carriage bolt (P31-110B) CARBON STEELZP |
| P31-200 | Versa-Matic Air Valve (P31-200) |
| P31-200 ASY | Air Valve Assy (P31-200 ASY) ALUMINIUM |
| P31-202 | Gasket (P31-202) MP2-N |
| P31-403 | Bushing Sleeve (P31-403) |
| P31-404 | Flat socket head bolt (P31-404) CARB.ST |
| P34-103 | Shaft (P34-103) STAINLESS STEEL |
| P34-104 | Shaft (P34-104) STAINLESS STEEL |
| P34-110 | Hex head bolt (P34-110) CARBON ST (ZP) |
| P34-204F | Glyd Ring Assy (P34-204F) |
| P34-300 | End Cap E2/E3 (P34-300) ALUMINUM |
| P34-402 | Bushing Sleeve (P34-402) BRASS |
| P34-403 | O-Ring (P34-403) BUNA |
| P34-404 | Bushing (P34-404) BRONZE |
| P34-501 | Bumper Washer (P34-501) POLYPROPYLENE |
| P50-102A | Air Valve Body (P50-102A) ALUMINIUM |
| P50-104 | Shaft (P50-104) ALUMINIUM |
| P50-104C | Glyd Ring Assy (P50-104C) |
| P50-107 | Shaft (P50-107) CARBON STEEL |
| P50-108 | Shaft (P50-108) CARBON STEEL |
| P50-109 | Plate (P50-109) ALUMINIUM |
| P50-110 | Gasket (P50-110) FASERFLEX |
| P50-112 | Shaft (P50-112) STAINLESS STEEL |
| P50-117 | E-Clip (P50-117) STAINLESS STEEL |
| P50-119 | Spacer (P50-119) BRASS |
| P50-300 | End Cap E4 (P50-300) ALUMINIUM |
| P50-403 | O-Ring (P50-403) BUNA |
| P79-109 | Gasket (P79-109) BUNA |
| P98-100 | Air valve (P98-100) |
| P98-103 ASY | Bushing (TP98-103) ACETAL |
| P98-103A | O-Ring (P98-103A) BUNA |
| P98-104 ASY | Shaft (TP98-104) ACETAL |
| P98-104A | U-Cup (P98-104A) BUNA |
| P98-104AUB | U-Cup (P98-104AUB) |
| P98-105 | Block (P98-105) PTFE(CARBON FILLED) |
| P98-105A | U-Cup (P98-105A) BUNA |
| P98-105B | U-Cup (P98-105B) BUNA |
| P98-105CT | Block (P98-105CT) PTFE(CARBON FILLED) |
| P98-105UB ASY | Valve spool Assembly (P98-105UB ASY) |
| P98-106 | Valve Insert (P98-106) CERAMIC(SIC) |
| P98-110 | Gasket (P98-110) BUNA |
| P98-111P | Gasket (P98-111P) POLYURETHANE |
| P98-111UB | Gasket (P98-111UB) POLYURETHANE |
| P98-300 | End Cap E1 (P98-300) ALUMINIUM |
| PE108 | Seat (PE108) POLYPROPYLENE |
| PE113 | Piston (PE113) POLYPROPYLENE |
| PE413 | Piston (PE413) POLYPROPYLENE |
| PE413TO | Piston (PE413TO) POLYPROPYLENE |
| PE500A | Valve body (PE500A) |
| PE519 | Water Chamber (PE519) POLYPROPYLENE |
| PE520 | Discharge Manifold (PE520) POLYPROPYLENE |
| PE520 ASY | Discharge Manifold (PE520 ASY) PP |
| PE520F | Inlet Manifold (PE520F) POLYPROPYLENE |
| PE520F ASY | Inlet Manifold (PE520F ASY) PP |
| PE521 | Seat (PE521) POLYPROPYLENE |
| PE522 | Ball cage (PE522) POLYPROPYLENE |
| PV181TO | Piston (PV181TO) POLYPROPYLENE |
| PV190 | Seat (PV190) POLYPROPYLENE |
| PV199B | Piston (PV199B) POLYPROPYLENE |
| PV220R | End Cap W/GUIDE (PV220R) |
| PV220S | End Cap W/O GUIDE (PV220S) |
| PV221TO | Piston (PV221TO) POLYPROPYLENE |
| PV226B | Piston (PV226B) POLYPROPYLENE |
| PV240 | Seat (PV240) POLYPROPYLENE |
| PV301R | End Cap (PV301R) |
| PV301S | End Cap (PV301S) WO/G |
| PVM1.0 BN KIT | Repair kit (PVM1.0 BN KIT) |
| PVM1.0 ND KIT | Repair kit (PVM1.0 ND KIT) |
| PVM1.0 NE KIT | Repair kit (PVM1.0 NE KIT) |
| PVM1.0 TF KIT | Repair kit (PVM1.0 TF KIT) |
| PVM1.0 VT KIT | Repair kit (PVM1.0 VT KIT) |
| PVM1.0 XL KIT | Repair kit (PVM1.0 XL KIT) |
| S1001 | Socket head bolt (S1001) SST |
| S1004 | Socket head bolt (S1004) SST |
| SP24-110 | Hex head bolt (SP24-110) SST |
| SP31-110 | Large clamp set (SP31-110) |
| SP31-110A | Clamp Large (SP31-110A) STAINLESS STEEL |
| SP31-110B | Carriage bolt (SP31-110B) SST |
| SP34-110 | Hex head bolt (SP34-110) STAINLESS STEEL |
| SV110 | Seat (SV110) STAINLESS STEEL |
| SV160AS | Socket head bolt (SV160AS) SST |
| SV161TO | Piston (SV161TO) SST |
| SV164 | Large clamp set (SV164) |
| SV164A | Clamp Large (TSV164) STAINLESS STEEL |
| SV164C | Carriage bolt (SV164C) STAINLESS STEEL |
| SV164D | Hex nut (SV164D) STAINLESS STEEL |
| SV169 | Small clamp set (SV169) |
| SV169A | Clamp Small (SV169A) STAINLESS STEEL |
| SV169B | Carriage bolt (SV169B) STAINLESS STEEL |
| SV169C | Hex nut (SV169C) STAINLESS STEEL |
| SV170 | Seat (SV170) STAINLESS STEEL |
| SV181C | Piston (SV181C) STAINLESS STEEL |
| SV181TO | Piston (SV181TO) STAINLESS STEEL |
| SV185A | Hex head bolt (SV185A) STAINLESS STEEL |
| SV185B | Hex flange nut (SV185B) STAINLESS STEEL |
| SV186A | Hex head bolt (SV186A) STAINLESS STEEL |
| SV187A | Hex head bolt (SV187A) STAINLESS STEEL |
| SV189B | Carriage bolt (SV189B) STAINLESS STEEL |
| SV189C | Flat washer (SV189C) STAINLESS ST. |
| SV189D | Hex head bolt (SV189D) STAINLESS STEEL |
| SV190 | Seat (SV190) STAINLESS STEEL |
| SV190TF | O-Ring (SV190TF) PTFE |
| SV196C | Flat washer (SV196C) STAINLESS STEEL |
| SV197E | Hex nut (SV197E) STAINLESS STEEL |
| SV197F | Hex head bolt (SV197F) STAINLESS STEEL |
| SV220AS | Socket head bolt (SV220AS) STAINLESS STEEL |
| SV221AT | Shaft (SV221AT) STAINLESS STEEL |
| SV221TO | Piston (SV221TO) STAINLESS STEEL |
| SV226B | Piston (SV226B) STAINLESS STEEL |
| SV230 | Large clamp set (SV230) |
| SV230A | Clamp Large (SV230A) STAINLESS STEEL |
| SV230C | Hex head bolt (SV230C) STAINLESS ST |
| SV230D | Hex nut (SV230D) STAINLESS STEEL |
| SV239 | Small clamp set (SV239) |
| SV239A | Clamp Small (SV239A) STAINLESS STEEL |
| SV239B | Hex head bolt (SV239B) STAINLESS STEEL |
| SV240 | Seat (SV240) STAINLESS STEEL |
| SV250A | Hex head bolt (SV250A)STAINLESS STEEL |
| SV250B | Hex head bolt (SV250B) STAINLESS STEEL |
| SV250C | Flat washer (SV250C) STAINLESS STEEL |
| SV251A | Hex head bolt (SV251A)STAINLESS STEEL |
| SV251B | Flange (SV251B) Nut Stainless Steel |
| SV251D | Hex head bolt (SV251D) STAINLESS ST |
| SV301T | Snap Ring (SV301T) STAINLESS STEEL |
| SV302B | Piston Outer (SV302B) SS |
| SV302G | Hex head bolt (SV302G) STAINLESS STEEL |
| SV302GA | Flat washer (SV302GA) STAINLESS STEEL |
| SV302TI | Piston (SV302TI) STAINLESS STEEL |
| SV302TO | Piston (SV302TO) STAINLESS STEEL |
| SV311 | Large clamp set (SV311) |
| SV311A | Clamp Large (SV311A) STAINLESS STEEL |
| SV311C | Hex nut (SV311C) STAINLESS STEEL |
| SV354 | Small clamp set (SV354) |
| SV354A | Clamp Small (SV354A) STAINLESS STEEL |
| SV354B | Carriage bolt (SV354B) STAINLESS STEEL |
| SV354C | Hex nut (SV354C) STAINLESS STEEL |
| SV356 | Seat (SV356) STAINLESS STEEL |
| SV387A | Bolt (SV387A) Stainless steel |
| SV387B | Flat washer (SV387B) STAINLESS STEEL |
| SV387C | Serrated hex flange nut (SV387C) SST |
| SV387D | Hex head bolt (SV387D) STAINLESS STEEL |
| SV456TES-1 | O-Ring (SV456TES-1) FEP/SILICON |
| SV456TES-2 | O-Ring (SV456TES-2) FEP/SILICON |
| SVB221 | Piston (SVB221) STAINLESS STEEL |
| SVB226 | Piston (SVB226) STAINLESS STEEL |
| SVB307 | Piston (SVB307) STAINLESS STEEL |
| V1 TF/AL KIT-1 | Repair kit (V1 TF/AL KIT-1) |
| V1 TF/ALCVKIT-1 | Repair kit (V1 TF/ALCVKIT-1) |
| V1 VT/TF KIT-1 | Repair kit (V1 VT/TF KIT-1) |
| V1.0 BN KIT-1 | Repair kit (V1.0 BN KIT-1) |
| V1.0 FG KIT-1 | Repair kit (V1.0 FG KIT-1) |
| V1.0 ND KIT-1 | Repair kit (V1.0 ND KIT-1) |
| V1.0 NE KIT-1 | Repair kit (V1.0 NE KIT-1) |
| V1.0 TF KIT-1 | Repair kit (V1.0 TF KIT-1) |
| V1.0 VT KIT-1 | Repair kit (V1.0 VT KIT-1) |
| V1.0 XL KIT-1 | Repair kit (V1.0 XL KIT-1) |
| V1.0FSS BN KIT | Repair kit (V1.0FSS BN KIT) |
| V1.0FSS FG KIT | Repair kit (V1.0FSS FG KIT) |
| V1.0FSS ND KIT | Repair kit (V1.0FSS ND KIT) |
| V1.0FSS TF KIT | Repair kit (V1.0FSS TF KIT) |
| V1.0FSS VT KIT | Repair kit (V1.0FSS VT KIT) |
| V1.0FSS XL KIT | Repair kit (V1.0FSS XL KIT) |
| V110A | Seat (V110A) ALUMINUM |
| V110BN | O-Ring (V110BN) BUNA |
| V110HT | O-Ring (V110HT) PTFE |
| V110ND | O-Ring (V110ND) EPDM |
| V110TES | O-Ring (V110TES) FEP/SILICON |
| V110TEV | O-Ring (V110TEV) FEP/VITON |
| V110VT | O-Ring (V110VT) FKM/VITON |
| V110XL | O-Ring (V110XL) SANTOPRENE |
| V111A | Ball (V111A) ACETAL |
| V111BN | Ball (V111BN) BUNA |
| V111SS | Ball (V111SS) STAINLESS STEEL |
| V111TF | Ball (V111TF) PTFE |
| V111TPEFG | Ball (V111TPEFG) HYTREL |
| V111TPEXL | Ball (V111TPEXL) SANTOPRENE |
| V111VT | Ball (V111VT) FKM/VITON |
| V160AS | Socket head bolt (V160AS)CARBON ST (ZP) |
| V160P | Gasket (V160P) FASERFLEX |
| V160T | Snap Ring (V160T) STAINLESS STEEL |
| V160U | O-Ring (V160U) BUNA |
| V161C | Piston (V161C) CARBON STEEL |
| V161TO | Piston (V161TO) ALUMINUM |
| V162B | Hex head bolt (V162B) CARBON STEEL (ZP |
| V163BN | Diaphragm (V163BN) BUNA |
| V163F | Diaphragm (V163F) PTFE Bonded |
| V163N | Diaphragm (V163N) NEOPRENE |
| V163ND | Diaphragm (V163ND) EPDM |
| V163TF | Diaphragm (V163TF) PTFE |
| V163TFB | Diaphragm (V163TFB) HYTREL |
| V163TPEFG | Diaphragm (V163TPEFG) HYTREL |
| V163TPEXL | Diaphragm (V163TPEXL) SANTOPRENE |
| V163TX | Diaphragm (V163TX) PTFE BONDED |
| V163VT | Diaphragm (V163VT) FKM/VITON |
| V164 | Large clamp set (V164) |
| V164A | Clamp Large (V164A) CARBON STEEL |
| V164D | Hex nut (V164D) CARBON STEEL (ZINC PL.) |
| V165 | Water Chamber (V165) ALU |
| V169 | Small clamp set (V169) |
| V169A | Clamp Small (V169A) CARBON STEEL |
| V169B | Carriage bolt (V169B) CARBON STEEL (ZP) |
| V169C | Hex nut (V169C) CARBON STEEL (ZINC PL.) |
| V170A | Seat (V170A) ALUMINUM |
| V170BN | Seat (V170BN) BUNA |
| V170N | Seat (V170N) NEOPRENE |
| V170ND | Seat (V170ND) EPDM |
| V170T | O-Ring (V170T) PTFE |
| V170TPEFG | Seat (TV170TPE-FG) HYTREL |
| V170TPEXL | Seat (V170TPEXL) SANTOPRENE |
| V170VT | Seat (V170VT) FKM/VITON |
| V171BN | Ball (V171BN) BUNA |
| V171N | Ball (V171N) NEOPRENE |
| V171ND | Ball (V171ND) EPDM |
| V171SS | Ball (V171SS) STAINLESS STEEL |
| V171TF | Ball (V171TF) PTFE |
| V171TPEFG | Ball (TV171TPE-FG) HYTREL |
| V171TPEXL | Ball (V171TPEXL) SANTOPRENE |
| V171VT | Ball (V171VT) FKM/VITON |
| V181C | Piston (V181C) CARBON STEEL |
| V181TI | Piston (V181TI) ALUMINUM |
| V183BN-1 | Diaphragm (V183BN-1) BUNA |
| V183F | Diaphragm (V183F) Fusion |
| V183N-1 | Diaphragm (V183N-1) NEOPRENE |
| V183ND-1 | Diaphragm (V183ND-1) EPDM |
| V183TB | Diaphragm (V183TB) HYTREL |
| V183TF-1 | Diaphragm (V183TF-1) PTFE |
| V183TPEFG | Diaphragm (V183TPEFG) HYTREL |
| V183TPEXL-1 | Diaphragm (V183TPEXL-1) SANTOPRENE |
| V183VT-1 | Diaphragm (V183VT-1) FKM/VITON |
| V185B | Hex flange nut (V185B) |
| V187A | Hex head bolt (V187A) CARBON ST.(ZP) |
| V188TEV | O-Ring (V188TEV) FEP/VITON |
| V188TF | O-Ring (V188TF) PTFE |
| V188XL | O-Ring (V188XL) SANTOPRENE |
| V189A | Hex head bolt (V189A) CARBON ST (ZP) |
| V190A | Seat (V190A) ALUMINUM |
| V190TES | O-Ring (V190TES) FEP/SILICON |
| V190TF | O-Ring (V190TF) PTFE |
| V190XL | O-Ring (V190XL) TPE SANTOPRENE |
| V191BN | Ball (V191BN) BUNA |
| V191N | Ball (V191N) NEOPRENE |
| V191ND | Ball (V191ND) EPDM |
| V191SS | Ball (V191SS) STAINLESS STEEL |
| V191TF | Ball (V191TF) PTFE |
| V191TPEFG | Ball (V191TPEFG) HYTREL |
| V191TPEXL | Ball (V191TPEXL) SANTOPRENE |
| V191VT | Ball (V191VT) FKM/VITON |
| V199C | Piston (V199C) ALUMINUM |
| V1K XL KIT | Repair kit (V1K XL KIT) |
| V1P FG KIT | Repair kit (V1P FG KIT) |
| V1P XL KIT | Repair kit (V1P XL KIT) |
| V2 TF/AL CV KIT | Repair kit (V2 TF/AL CV KIT) |
| V2 TF/SS CV KIT | Repair kit (V2 TF/SS CV KIT) |
| V2 XL/BN/XL KIT | Repair kit (V2 XL/BN/XL KIT) |
| V2 XL/TF/XL KIT | Repair kit (V2 XL/TF/XL KIT) |
| V2.0 BN KIT | Repair kit (V2.0 BN KIT) |
| V2.0 FG KIT | Repair kit (V2.0 FG KIT) |
| V2.0 ND KIT | Repair kit (V2.0 ND KIT) |
| V2.0 NE KIT | Repair kit (V2.0 NE KIT) |
| V2.0 TF/AL KIT | Repair kit (V2.0 TF/AL KIT) |
| V2.0 TF/SS KIT | Repair kit (V2.0 TF/SS KIT) |
| V2.0 VT KIT | Repair kit (V2.0 VT KIT) |
| V2.0 VT/TF KIT | Repair kit (V2.0 VT/TF KIT) |
| V2.0 XL KIT | Repair kit (V2.0 XL KIT) |
| V20AEM | Muffler 3/4″ (V20AEM) MNPT |
| V20ALF | Air Valve assy. (V20ALF) |
| V220AS | Socket head bolt (V220AS)CARBON ST (ZP) |
| V220B | Gasket (V220B) |
| V220E | Air Filter (V220E) BRONZE SINTERED |
| V220H | Center section (V220H) ALU |
| V220J | O-Ring (V220J) BUNA |
| V220P | Gasket (V220P) FASERFLEX |
| V220T | Snap Ring (V220T) STAINLESS STEEL |
| V220U | O-Ring (V220U) BUNA |
| V221A | Shaft (V221A) STAINLESS STEEL |
| V221B | Piston (V221B) ALUMINUM |
| V221BNP | Piston (V221BNP) Nickel Plated |
| V221D | O-Ring (V221D) BUNA |
| V221F | Stud (V221F) CARBON STEEL ZP |
| V221TI | Piston (V221TI) ALUMINUM |
| V221TO | Piston (V221TO) ALUMINUM |
| V222B | Air Chamber (V222B) ALUMINUM |
| V224BN | Diaphragm (V224BN) BUNA |
| V224F | Diaphragm (V224F) BONDED |
| V224N | Diaphragm (V224N) NEOPRENE |
| V224ND | Diaphragm (V224ND) EPDM |
| V224TF | Diaphragm (V224TF) PTFE |
| V224TFB | Diaphragm (V224TFB) HYTREL |
| V224TF-FB | Diaphragm (V224TF-FB) PTFE |
| V224TPEFG | Diaphragm (V224TPEFG) HYTREL |
| V224TPEXL | Diaphragm (V224TPEXL) SANTOPRENE |
| V224TPEXLFG | Diaphragm (V224TPEXLFG) SANTOPRENE FDA |
| V224VT | Diaphragm (V224VT) FKM/VITON |
| V225BN | Diaphragm (V225BN) BUNA |
| V225BN KIT | Repair kit (V225BN KIT) |
| V225FG KIT | Repair kit (V225FG KIT) |
| V225N | Diaphragm (V225N) NEOPRENE |
| V225N KIT | Repair kit (V225N KIT) |
| V225ND | Diaphragm (V225ND) EPDM |
| V225ND KIT | Repair kit (V225ND KIT) |
| V225TPEFG | Diaphragm (V225TPEFG) HYTREL |
| V225TPEXL | Diaphragm (V225TPEXL) SANTOPRENE |
| V225VT | Diaphragm (V225VT) FKM/VITON |
| V225VT KIT | Repair kit (V225VT KIT) |
| V225VT/TF KIT | Repair kit (V225VT/TF KIT) |
| V225XL KIT | Repair kit (V225XL KIT) |
| V226B | Piston (V226B) ALUMINUM |
| V227BN | Diaphragm (V227BN) BUNA |
| V227F | Diaphragm (V227F) BONDED |
| V227N | Diaphragm (V227N) NEOPRENE |
| V227ND | Diaphragm (V227ND) EPDM |
| V227P XL KIT | Repair kit (V227P XL KIT) |
| V227TF | Diaphragm (V227TF) PTFE |
| V227TFB | Diaphragm (V227TFB) NEOPRENE |
| V227TPEFG | Diaphragm (V227TPEFG) HYTREL |
| V227TPEXL | Diaphragm (V227TPEXL) SANTOPRENE |
| V227VT | Diaphragm (V227VT) FKM/VITON |
| V230 | Large clamp set (V230) |
| V230A | Clamp Large (V230A) CARBON STEEL |
| V230C | Hex head bolt (V230C) |
| V230D | Hex nut (V230D) CARBON STEEL (ZINC PL.) |
| V235 | Water Chamber (V235) ALUMINUM |
| V239 | Small clamp set (V239) |
| V239A | Clamp Small (V239A) CARBON STEEL |
| V239B | Hex head bolt (V239B) CARBON ST (ZP) |
| V239C | Hex nut (V239C) CARBON STEEL (ZINC PL.) |
| V240A | Seat (V240A) ALUMINUM |
| V240BN | Seat (V240BN) BUNA |
| V240N | Seat (V240N) NEOPRENE |
| V240ND | Seat (V240ND) EPDM |
| V240T | O-Ring (V240T) PTFE |
| V240TF | Seat (V240TF) PTFE |
| V240TPEFG | Seat (V240TPEFG) HYTREL |
| V240TPEXL | Seat (V240TPEXL) SANTOPRENE |
| V240TPEXLFG | Seat (V240TPEXLFG) SANTOPRENE FDA |
| V240VT | Seat (V240VT) FKM |
| V241BN | Ball (V241BN) BUNA |
| V241N | Ball (V241N) NEOPRENE |
| V241ND | Ball (V241ND) EPDM |
| V241SS | Ball (V241SS) STAINLESS STEEL |
| V241TF | Ball (V241TF) PTFE |
| V241TPEFG | Ball (V241TPEFG) HYTREL |
| V241TPEXL | Ball (V241TPEXL) SANTOPRENE |
| V241TPEXLFG | Ball (V241TPEXLFG) |
| V241VT | Ball (V241VT) FKM/VITON |
| V251D | Hex head bolt (V251D) |
| V258BN | O-Ring (V258BN) BUNA |
| V258ND | O-Ring (V258ND) EPDM |
| V258TES | O-Ring (V258TES) FEP/SILICON |
| V258TEV | O-Ring (V258TEV) FEP/VITON |
| V258VT | O-Ring (V258VT) FKM/VITON |
| V258XL | O-Ring (V258XL) SANTOPRENE |
| V273-TF | Clamp gasket (V273-TF) PTFE |
| V288VT | O-Ring (V288VT) FKM/Viton |
| V288XL | O-Ring (V288XL) TPE SANTOPRENE |
| V3 XL/NE/XL KIT | Repair kit (V3 XL/NE/XL KIT) |
| V3 XL/NE/XL KIT | Repair kit (V3 XL/NE/XL KIT) |
| V3.0 BN KIT | Repair kit (V3.0 BN KIT) |
| V3.0 FG KIT | Repair kit (V3.0 FG KIT) |
| V3.0 ND KIT | Repair kit (V3.0 ND KIT) |
| V3.0 NE KIT | Repair kit (V3.0 NE KIT) |
| V3.0 TF/AL KIT | Repair kit (V3.0 TF/AL KIT) |
| V3.0 TF/SS KIT | Repair kit (V3.0 TF/SS KIT) |
| V3.0 VT KIT | Repair kit (V3.0 VT KIT) |
| V3.0 VT/TF KIT | Repair kit (V3.0 VT/TF KIT) |
| V3.0 XL KIT | Repair kit (V3.0 XL KIT) |
| V301ALF | Air Valve assy. (V301ALF) |
| V301B | Gasket (V301B) Fiber |
| V301J | O-Ring (V301J) BUNA |
| V301P | Gasket (V301P) FASERFLEX |
| V301U | O-Ring (V301U) BUNA |
| V302B | Piston (V302B) ALUMINUM |
| V302BDC | Piston (V302BDC) ALUMINUM |
| V302C | Piston (V302C) ALUMINUM |
| V302CDC | Piston (V302CDC) ALUMINUM |
| V302CNP | Piston (V302CNP) Nickel Plated |
| V302E | Washer (V302E) CARBON STEEL |
| V302G | Hex head bolt (V302G) CARBON STEEL (ZP) |
| V302GA | Flat washer (V302GA) CARBON STEEL (ZP) |
| V302TI | Piston (V302TI) ALUMINUM |
| V302TO | Piston (V302TO) ALUMINUM |
| V303B | Air Chamber (V303B) ALUMINUM |
| V305BN | Diaphragm (V305BN) BUNA |
| V305N | Diaphragm (V305N) NEOPRENE |
| V305ND | Diaphragm (V305ND) EPDM |
| V305TF | Diaphragm (V305TF) PTFE |
| V305TFB | Diaphragm (V305TFB) HYTREL |
| V305TF-FB | Diaphragm (V305TF-FB) PTFE |
| V305TPEFG | Diaphragm (V305TPEFG) HYTREL |
| V305TPEXL | Diaphragm (V305TPEXL) SANTOPRENE |
| V305VT | Diaphragm (V305VT) FKM/VITON |
| V306BN | Diaphragm (V306BN) BUNA |
| V306BN KIT | Repair kit (V306BN KIT) |
| V306N | Diaphragm (V306N) NEOPRENE |
| V306N CV AL KIT | Repair kit (V306N CV AL KIT) |
| V306N KIT | Repair kit (V306N KIT) |
| V306ND | Diaphragm (V306ND) EPDM |
| V306ND KIT | Repair kit (V306ND KIT) |
| V306VT | Diaphragm (V306VT) FKM/VITON |
| V306VT KIT | Repair kit (V306VT KIT) |
| V307B | Piston (V307B) ALUMINUM |
| V311 | Large clamp set (V311) |
| V311A | Clamp Large (V311A) CARBON STEEL |
| V311D | Hex nut (V311D) CARBON STEEL (ZINC PL.) |
| V350 | Water Chamber (V350) ALUMINUM |
| V354 | Small clamp set (V354) |
| V354A | Clamp Small (V354A) CARBON STEEL |
| V354B | Carriage bolt (V354B) |
| V354C | Hex nut (V354C) CARBON STEEL (ZINC PL.) |
| V355BN | Ball (V355BN) BUNA |
| V355N | Ball (V355N) NEOPRENE |
| V355ND | Ball (V355ND) EPDM |
| V355TF | Ball (V355TF) PTFE |
| V355TPEFG | Ball (V355TPEFG) HYTREL |
| V355TPEXL | Ball (V355TPEXL) SANTOPRENE |
| V355VT | Ball (V355VT) FKM/VITON |
| V356A | Seat (V356A) ALUMINUM |
| V356BN | Seat (V356BN) BUNA |
| V356N | Seat (V356N) NEOPRENE |
| V356ND | Seat (V356ND) EPDM |
| V356T | O-Ring (V356T) PTFE |
| V356TF | Seat (V356TF) PTFE |
| V356TPEFG | Seat (V356TPEFG) HYTREL |
| V356TPEXL | Seat (V356TPEXL) SANTOPRENE |
| V356VT | Seat (V356VT) FKM/VITON |
| V387A | Bolt (V387A) |
| V387B | Flat washer (V387B) |
| V387C | Serrated hex flange nut (V387C) |
| V387D | Hex head bolt (V387D) |
| V4 BN/TF KIT | Repair kit (V4 BN/TF KIT) |
| V4 TF/AL CV KIT | Repair kit (V4 TF/AL CV KIT) |
| V4 TF/AL KIT | Repair kit (V4 TF/AL KIT) |
| V4 TF/SS KIT | Repair kit (V4 TF/SS KIT) |
| V4 VT/TF KIT | Repair kit (V4 VT/TF KIT) |
| V4 XL/TF KIT | Repair kit (V4 XL/TF KIT) |
| V455BN | Ball (V455BN) BUNA |
| V455N | Ball (V455N) NEOPRENE |
| V455ND | Ball (V455ND) EPDM |
| V455TF | Ball (V455TF) PTFE |
| V455TPEFG | Ball (V455TPEFG) HYTREL |
| V455TPEXL | Ball (V455TPEXL) SANTOPRENE |
| V455VT | Ball (V455VT) FKM/VITON |
| V456BN | Seat (V456BN) BUNA |
| V456N | Seat (V456N) Neoprene |
| V456ND | Seat (V456ND) EPDM |
| V456TF | Seat (V456TF) PTFE |
| V456TPEFG | Seat (TV456TPE-FG) HYTREL |
| V456TPEXL | Seat (TV456TPE-XL) SANTOPRENE |
| V456VT | Seat (V456VT) FKM/VITON |
| V60ALF | Air valve (V60ALF) Bronze |
| V81B | Piston (V81B) ALUMINUM |
| V90A | Seat (V90A) ALUMINUM |
| V90BN | O-Ring (V90BN) BUNA |
| V90ND | O-Ring (V90ND) EPDM |
| V90VT | O-Ring (V90VT) FKM/VITON |
| VB161 | Piston (VB161) ALUMINUM |
| VB221 | Piston (VB221) ALUMINUM |
| VB226 | Piston (VB226) ALUMINUM |
| VB307 | Piston (VB307) ALUMINUM |
| VTM-3 | Muffler 3/8″ (VTM-3) |
| VTM-4 | Muffler 1/2″ (VTM-4) |
| VTM-4A | Muffler 1/2″ (VTM-4A) MNPT |
| VTM-4B | Muffler 1/2″ (VTM-4B) |
| VTM-6 | Muffler 3/4″ (VTM-6) |
| VTM-8 | Muffler 1″ (VTM-8) |
| WV302B | Piston (WV302B) CAST IRON |
| WVB161 | Piston (WVB161) CAST IRON |
| Description | PN |
| VALVE BODY GASKET | 031.V003.156 |
| Air Valve Assembly | 031.V006.156 |
| VALVE BODY | 095.V001.156 |
| seals | 360.V001.360 |
| PILOT REP KIT | 476.V010.000 |
| PILOT REP KIT | 476.V018.000 |
| O-RING | 560.023.358 |
| PILOT VALVE SLEEVE O-RINGS | 560.101.358 |
| SAHFT/PILOT RETAINER | 670.V002.554 |
| MAIN SHAFT | 685.V001.120 |
| Pilot Sleeve Assy， including 6 O-rings, center block, E2 | 755.V002.000 |
| Pilot Sleeve Assy， including 6 O-rings, center block, E3 | 755.V002.000 |
| PILOT VALVE SLEEVE ASY, center block, including 6 O-rings, E1 | 755.V004.000 |
| VALVE SLEEVE , Air valve, E3 | 755.V005.148 |
| Valve Sleeve， including 6 O-rings, air valve, E2 | 755.V006.148 |
| Valve Spool, including 6 glyd rings, air valve, E2 （P34-214） | 775.V001.000 |
| Valve Spool, including 6 glyd rings,air valve E3 （P34-214） | 775.V001.000 |
| Spool Assy including 8 o-rings, center block, E2 | 775.V002.000 |
| Pilot Spool Assembly， Center blcok, including 8 O-rings, E3 | 775.V006.000 |
| VALVE SPOOL ASSEMBLY | E100BUB |
| Liquid service kits, for E2p Pump | E2P |
| END CAP ASSEMBLY (INCLUDES O-RING) | E500D |
| REDUCING END CAP ASSEMBLY (INCLUDES O-RINGS) | E500DUB |
| 0.5″ pump diaphragm, NBR | E505BN |
| 0.5″ pump diaphragm, CR | E505N |
| 0.5″ pump diaphragm, EPDM | E505ND |
| 0.5″ pump diaphragm, PTFE | E505TF |
| 0.5″ pump diaphragm, Santoprene | E505TPEXL |
| 0.5″ pump diaphragm, FKM | E505VT |
| Shaft，stainless Steel | P24-103 |
| Pilot Shaft，304 Stainless Steel | P24-104 |
| Bushing，Copper | P24-105 |
| Pilot Valve Spacer Ring，Copper | P24-106 |
| Pilot Valve Spacer Ring，Copper | P24-106 |
| Pilot Valve O-ring，Nitrile | P24-107 |
| Pilot valve O-Ring，Nitrile | P24-107 |
| Stop Nut，Carbon Steel | P24-108 |
| Stop Nut，Carbon Steel | P24-108 |
| Gasket,Center Block，Santoprene | P24-109 |
| Center Block Bolt，304 Stainless Steel | P24-110 |
| Gasket,Valve Body，Santoprene | P24-202 |
| Gasket,Valve Body，Santoprene | P24-202 |
| Gasket,End Cap，Santoprene | P24-205 |
| Gasket,End Cap，Santoprene | P24-205 |
| Cap screw，304 Stainless Steel | P24-208 |
| Valve Screw，304 Stainless Steel | P24-208 |
| Air Valve Screen，Copper | P24-210 |
| Air Valve Screen，Copper | P24-210 |
| Center Block，Aluminum | P24-400DC |
| Center section， ALU | P24-400DC |
| center block O-Ring，Nitrile | P24-403 |
| Bumper Washer E2， | P24-501 |
| Shaft，304 Stainless Steel | P34-103 |
| Pilot Shaft，304 Stainless Steel | P34-104 |
| Bushing， threaded，Copper | P34-105 |
| Center Block Bolt，Stainless Steel | P34-110 |
| Valve Assembly，Aluminum, Replacement version | P34-200 |
| AIR VALVE ASSEMBLY 2″ & 3″ | P34-200 |
| Spool | P34-204 |
| Glyd ring assembly | P34-204F |
| Glyd ring assembly，For valve spool 775.V001.000 | P34-204F |
| Valve Screw | P34-208 |
| Cap Screw | P34-209 |
| Air Valve Screen | P34-210 |
| End Cap assembly，Aluminum | P34-300 |
| Center Block，Aluminum | P34-400 |
| O-Ring，Nitrile | P34-403 |
| BEARING SLEEVE | P34-404 |
| BUMPER WASHER | P34-501 |
| Bumper Washer E3， | P34-501 |
| MAIN SHAFT O-RING | P50-403 |
| Gasket，Air chamber | P79-109 |
| Seat, PP | PV240 |
| Seat，Alu | V110A |
| Rubber ball， NBR，0.75 | V111BN |
| rubber ball，neoprene，0.75 | V111N |
| Rubber ball, EPDM，0.75 | V111ND |
| 0.75“ PTFE ball | V111TF |
| Rubber ball，Viton，0.75 | V111VT |
| 1.5″ pump diaphragm, NBR | V163BN |
| 1.5″ pump diaphragm, CR | V163N |
| 1.5″ pump diaphragm, EPDM | V163ND |
| 1.5″ pump diaphragm, PTFE | V163TF |
| 1.5″ pump diaphragm, santoprene | V163TPEXL |
| 1.5″ pump diaphragm, FKM | V163VT |
| Seat， BUNA-N | V170BN |
| Seat， NEOPRENE | V170N |
| Seat, EPDM | V170ND |
| Seat, Viton | V170VT |
| Rubber ball， NBR，1.875 | V171BN |
| rubber ball，neoprene，1.875 | V171N |
| Rubber ball, EPDM，1.875 | V171ND |
| 1.875“ PTFE ball | V171TF |
| Rubber ball，Viton，1.875 | V171VT |
| 1″ pump diaphragm, NBR | V183BN-1 |
| 1″ pump diaphragm, CR | V183N-1 |
| 1″ pump diaphragm, EPDM | V183ND-1 |
| 1“ pump diaphragm, backup | V183TB |
| 1″ pump diaphragm, PTFE | V183TF-1 |
| 1″ pump diaphragm, Santoprene | V183TPEXL-1 |
| 1″ pump diaphragm, FKM | V183VT-1 |
| Rubber ball， NBR，1 | V191BN |
| rubber ball，neoprene，1 | V191N |
| Rubber ball, EPDM，1 | V191ND |
| 1” PTFE ball | V191TF |
| Rubber ball，Viton，1 | V191VT |
| Piston Inner, Alu (08-3700-01) | V221B |
| O-RING | V221D |
| 2″ pump diaphragm, NBR | V224BN |
| 2″ pump diaphragm, CR | V224N |
| 2″ pump diaphragm, EPDM | V224ND |
| 2″ pump diaphragm, PTFE | V224TF |
| 2″ pump diaphragm, Hytrel | V224TFB |
| 2″ pump diaphragm, Santoprene | V224TPEXL |
| 2″ pump diaphragm, FKM | V224VT |
| E2 clamped dome diaphragm | V225BN |
| E2 clamped dome diaphragm | V225N |
| 2″ pump diaphragm, santoprene | V225TPEXL |
| 2″ pump diaphragm, PTFE | V227TF |
| 2″ pump diaphragm, backup | V227TFB |
| 2″ pump diaphragm, santoprene | V227TPEXL |
| large Clamp Band assembly, (08-7300-08)E2, including 2 bolts and 2 nuts，welded version | V230 |
| Liquid chamber, E2, Alu (08-5000-01) | V235 |
| Discharge Manifold，(08-5020-01) Alu, E2 | V236 |
| Inlet Housing For Footed Base，(08-5080-01) Alu, E2 | V237F |
| Samll Clamp Band assembly, (08-7100-08)E2, including 2 bolts and 2 nuts, mild steel | V239 |
| Seat, BUNA-N | V240BN |
| Seat, NEOPRENE | V240N |
| Seat, EPDM | V240ND |
| Seat, Viton | V240VT |
| Rubber ball， NBR，2.5 | V241BN |
| rubber ball，neoprene，2.5 | V241N |
| Rubber ball, EPDM，2.5 | V241ND |
| 2.5“ PTFE ball | V241TF |
| Ball，santoprene | V241TPEXL |
| Rubber ball，Viton，2.5 | V241VT |
| Piston Outer， Alu (15-4550-01) | V302BDC |
| Piston Inner, Alu, E3, (15-3700-01) | V302CDC |
| Back Up Washer E3， | V302E |
| 3″ pump diaphragm, NBR | V305BN |
| 3″ pump diaphragm, CR | V305N |
| 3″ pump diaphragm, EPDM | V305ND |
| 3″ pump diaphragm, PTFE | V305TF |
| 3″ pump diaphragm, santoprene | V305TPEXL |
| 3″ pump diaphragm, FKM | V305VT |
| Domed diaphragm for E3 | V306BN |
| Domed diaphragm for E3 | V306N |
| Domed diaphragm for E3 | V306VT |
| large Clamp Band assembly (15-73000-8), E3, including 2 bolts and 2 nuts， mild steel | V311 |
| Liquid Chamber, E3, (15-5000-01) | V350 |
| Discharge Manifold, Alu, E3 (15-5020-01) | V351 |
| Inlet Housing For Footed Base (15-5080-01)，Alu, E3 | V352F |
| Samll Clamp Band assembly, E3, (15-7100-08) including 2 bolts and 2 nuts, mild steel | V354 |
| Rubber ball， NBR，3.25 | V355BN |
| rubber ball，neoprene，3.25 | V355N |
| Rubber ball, EPDM，3.25 | V355ND |
| 3.25”PTFE ball | V355TF |
| Rubber ball，Viton，3.25 | V355VT |
| Seat, BUNA | V356BN |
| Seat, NEOPRENE | V356N |
| Seat, EPDM | V356ND |
| seat, viton | V356VT |
| Rubber ball， NBR，3.82 | V455BN |
| rubber ball，neoprene，3.82 | V455N |
| Rubber ball, EPDM，3.82 | V455ND |
| 3.75“PTFE ball | V455TF |
| Rubber ball，Viton，3.82 | V455VT |
| Seat，Alu | V90A |
| VALVE SEAT O-RING | V90BN |
| Piston Outer， Alu (08-4550-01) | VB221 |
| Muffier，Carbon Steel | VTM-4 |
| Muffier，Carbon Steel | VTM-8 |
| Muffier，Carbon Steel | VTM-8 |
