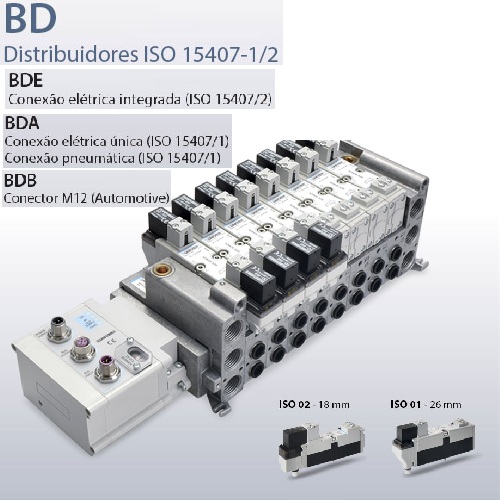

BDE = ISO 15407/2 electrical distributors with integrated electrical connection, 24V DC coils and connectors.
BDB = ISO 15407/1 electrical distributors with external electrical connection with M12 connector, 24V DC coils and connector. BDA = distributors and electrical distributors ISO 15407/1.
Models
-BDE: Integrated Electrical Connection, ISO 15407/2;
-BDB: Conector M12 (Automotive);
-BDA: Single Electrical Connection or Pneumatic Connection, ISO 15407/1)
Character
Maximum pressure: 09 bar (ELECTRIC) 10 bar (PNEUMATIC);
Room temperature: -20°C ÷ + 50°C ;
Fluent: Filtered air 50µm dehumidified or not;
Permutation system: SPOOL;
Connections: Interface ISo 15407-1/2;
Nominal diameter (mm): 6 (18mm) ; 8 (26mm);
Nominal flow level (NL/min): Catalog Table;
Valve body: Acetal Resin with Aluminum Cover;
Seals: NBR ;
Voltage: 12-24 VCC / 48-110-230 VCA ;
Energy consumption: 2W ;
Pilot/coil electro: A-U05 ;
