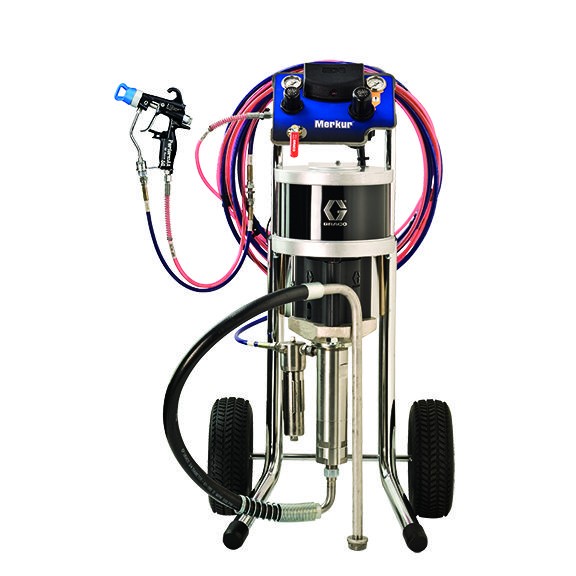

Merkur fine finishing pump packages are designed to improve productivity, reduce costs, decrease emissions and provide consistent, high-quality finishes for all your demanding applications.
| Maximum hose length (feet) | 25 |
|---|---|
| Convertible | Not convertible |
| Hose inlet diameter (in.) | 0.1968 |
| Power supply | Ar |
| Includes | Pump and gun air controls, Gun hose, Suction hose, Fluid filter |
| Lubricated materials | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon, Engineering Plastic, Fluoroelastomer |
| Model | Mercury |
| Pistol model | PerformAA 50 air assistance |
| Number of guns | 1 |
| Weight (lbs) | 108 |
| Pistol included | 1 |
| Maximum working pressure (MPa) | 20.7 |
| Maximum working pressure (psi) | 3000 |
| Pump ratio | 30:1 |
| Fluid inlet size (in.) | 3/4 |
| Fluid outlet size (in.) | 3/8 |
| Maximum Flow Rate (GPM) | 1,2 |
| Pistol technology | Air assisted |
| Type | Airless/Air Assisted Sprayer |
| Type of fluid inlet thread | NPT |
| Fluid outlet thread type | NPT |
| Pump type | Pneumatic piston pumps |
| Mounting type | Cart assembly |
| Engine type | Pneumatic |
| Pistol type | Air assisted |
| Pressure type | Greater Pressure |
| Product type | Spray Set |
| Type of spray | Air assisted |
| Type of technology | Air assisted |
| Maximum hose length (cm) | 762 |
| Maximum hose length (m) | 7.6 |
| Convertible | Not convertible |
| Hose inlet diameter (cm) | 0.5 |
| Hose inlet diameter (mm) | 5 |
| Hose inlet diameter (in.) | 0.1968 |
| Power supply | Ar |
| Includes | Pump and gun air controls, Gun hose, Suction hose, Fluid filter |
| Lubricated materials | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon, Engineering Plastic, Fluoroelastomer |
| Model | Mercury |
| Pistol model | PerformAA 50 air assistance |
| Number of guns | 1 |
| Weight (kg) | 48.99 |
| Pistol included | 1 |
| Maximum working pressure (MPa) | 20.7 |
| Maximum working pressure (bar) | 207 |
| Maximum working pressure (kPa) | 20700 |
| Pump ratio | 30:1 |
| Fluid inlet size (cm) | 1.905 |
| Fluid inlet size (mm) | 19.05 |
| Fluid inlet size (in.) | 3/4 |
| Fluid outlet size (cm) | 0.9525 |
| Fluid outlet size (mm) | 9.525 |
| Fluid outlet size (in.) | 3/8 |
| Maximum flow rate (L/min) | 4.54 |
| Pistol technology | Air assisted |
| Type | Airless/Air Assisted Sprayer |
| Type of fluid inlet thread | NPT |
| Fluid outlet thread type | NPT |
| Pump type | Pneumatic piston pumps |
| Mounting type | Cart assembly |
| Engine type | Pneumatic |
| Pistol type | Air assisted |
| Pressure type | Greater Pressure |
| Product type | Spray Set |
| Type of spray | Air assisted |
| Type of technology | Air assisted |
