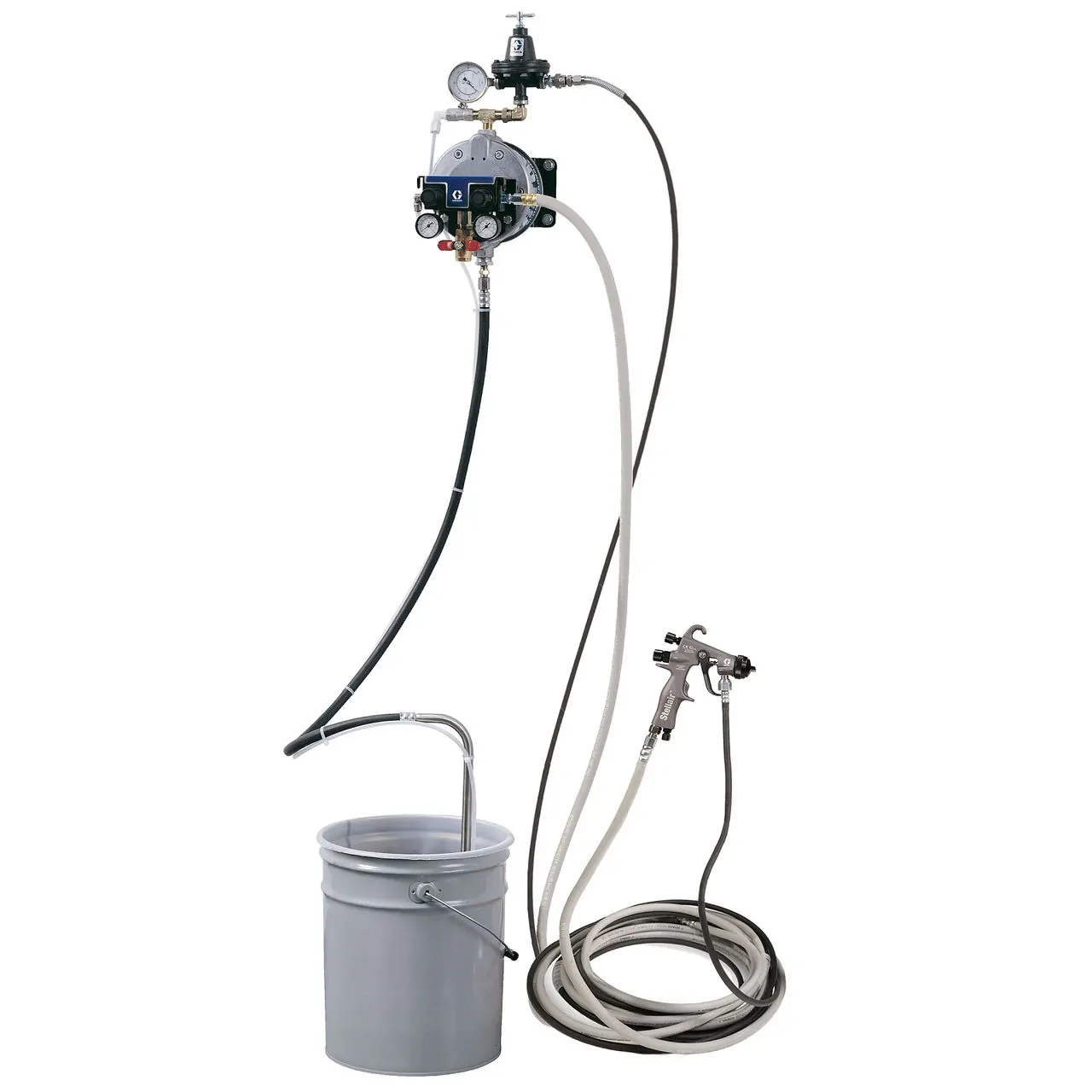

Triton is an air-operated diaphragm spray package that applies a high-quality decorative finish to wood and metal parts. It constitutes a more effective alternative to traditional pressure vessels and standard pneumatic diaphragm pumps.
| Application | Metallic |
|---|---|
| Power supply | Ar |
| Includes | 25ft Air Hose, 25ft Fluid Hose, Applicator |
| Mounting location | Wall mounting |
| Compatible material | CARC (chemical resistant coating), Enamel, Epoxy, High solids, Latex, Lacquer, Metallics, Pigment, Single component, Solvent-based paints, Solvent-based, Varnish primer, Water-based |
| Model | Triton |
| Pistol model | Stellair |
| Weight (lbs) | 24 |
| Pistol included | 1 |
| Maximum working pressure (psi) | 100 |
| Maximum inlet air pressure (psi) | 100 |
| Pump ratio | 1:1 |
| Series | 308 |
| Fluid inlet size (in.) | 3/4 |
| Fluid outlet size (in.) | 3/8 |
| Maximum Flow Rate (GPM) | 8,5 |
| Pistol technology | Conventional |
| Type | Air driven sprayer |
| Type of fluid inlet thread | NPT |
| Fluid outlet thread type | NPT |
| Pump type | Pneumatic diaphragm pumps |
| Mounting type | Wall mounting |
| Pistol type | Air sprayer |
| Pressure type | Low pressure |
| Product type | Spray Set |
| Sprayer Type | Air sprayer |
| Type of spray | Fed to ar |
| Type of technology | Conventional |
| Application | Metallic |
| Power supply | Ar |
| Includes | 25ft Air Hose, 25ft Fluid Hose, Applicator |
| Mounting location | Wall mounting |
| Compatible material | CARC (chemical resistant coating), Enamel, Epoxy, High solids, Latex, Lacquer, Metallics, Pigment, Single component, Solvent-based paints, Solvent-based, Varnish primer, Water-based |
| Model | Triton |
| Pistol model | Stellair |
| Weight (kg) | 10.9 |
| Pistol included | 1 |
| Maximum working pressure (bar) | 7 |
| Maximum working pressure (kPa) | 700 |
| Maximum inlet air pressure (bar) | 7 |
| Maximum inlet air pressure (kPa) | 700 |
| Maximum inlet air pressure (psi) | 100 |
| Pump ratio | 1:1 |
| Series | 308 |
| Fluid inlet size (cm) | 1.905 |
| Fluid inlet size (mm) | 19.05 |
| Fluid inlet size (in.) | 3/4 |
| Fluid outlet size (cm) | 0.9525 |
| Fluid outlet size (mm) | 9.525 |
| Fluid outlet size (in.) | 3/8 |
| Maximum flow rate (L/min) | 32 |
| Pistol technology | Conventional |
| Type | Air driven sprayer |
| Type of fluid inlet thread | NPT |
| Fluid outlet thread type | NPT |
| Pump type | Pneumatic diaphragm pumps |
| Mounting type | Wall mounting |
| Pistol type | Air sprayer |
| Pressure type | Low pressure |
| Product type | Spray Set |
| Sprayer Type | Air sprayer |
| Type of spray | Fed to ar |
| Type of technology | Conventional |
