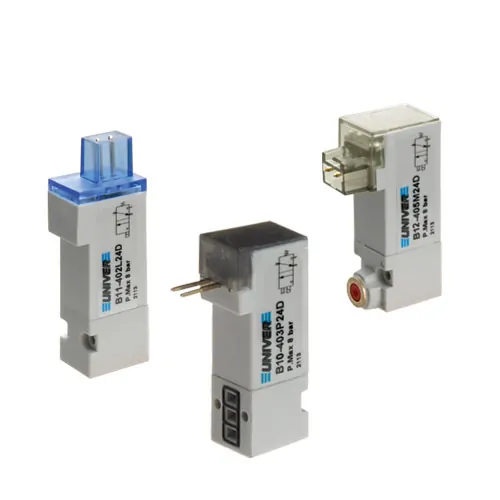

These valves are compact in size and are the smallest 3 -way electro valves made by Univers. The body is made up of a the term stamped term. They are mainly used to send pneumatic commands and receive electrical impulses from PLCs or other integrated control system; These are generally used to control higher capacity valves, but can also be used to directly control simple micro cylinders with a diameter of 8 ÷ 12 mm; In this case, they are installed on the base plate and are assembled in series.
Models
According to the function, and others.
Character
Maximum pressure: 9 bar ;
Room temperature: -5°C ÷ + 50°C ;
Fluent: Filtered air 10µm, with or without lubrication;
Work frequency: 5 Hz;
Fixation: n.2 screws m1,6;
Connections: Interface ISo 15218;
Nominal diameter (mm): 3/2 Via NF: 0.8 - 3/2 copies at: 1.3;
Nominal flow level: 15 nl/min;
Valve body: Self-extinguishable technopolymer;
Seals: Viton / NBR;
Voltage: 24 VCC (12 VCC on request);
Energy consumption: 1W;
