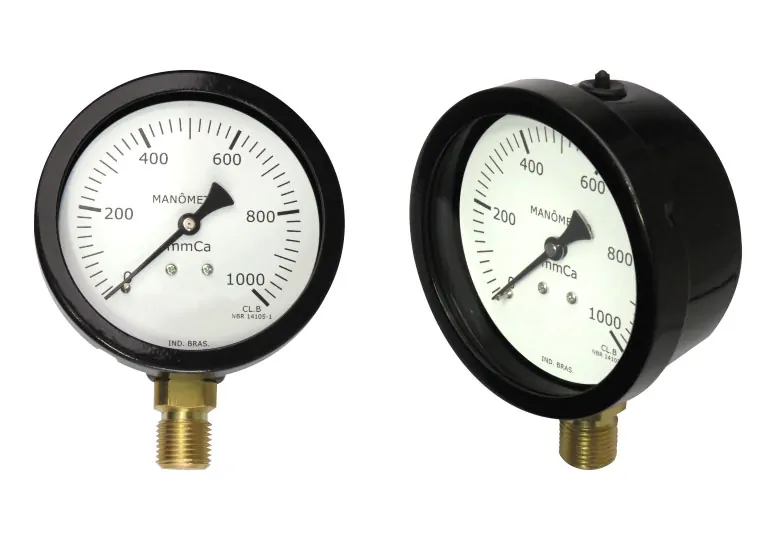

Brass or stainless steel gauge to measure low pressures, applied to artificial breathing equipment, ventilation and air conditioning, leak testing, burners, dryers, etc.
Box: Stamped steel plate, black or stainless steel epoxy paint.
Aro: Printed carbon steel, black or stainless steel epoxy paint.
Flange: front or rear.
Counter: White background and black recording.
Pointer: Aluminum, balanced.
Visor: 2 and 3mm flat glass.
Sensor element: brass or stainless steel.
Mechanism: Brass with adjustment.
Connection: Lower or concentric rear with 1/8 ”, 1/4”, 3/8 ”or 1/2” NPT or BSP thread.
Socket: Brass or stainless steel.
Precision: Class B = 3/2/3% of the total scale. Class A = 1.5 / 1 / 1.5% of the total scale.
