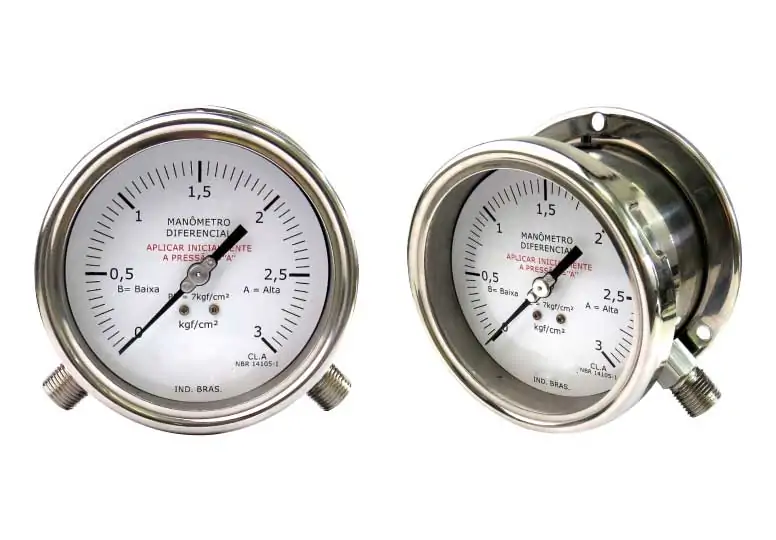

Differential manometer built in stainless steel, for measuring differential pressures between two pressures.
Box: BOX AND RING Stainless steel bayonet.
Safety Valve: located at the top or behind the box.
Counter: White background and black recording.
Pointer: Aluminum, balanced.
Visor: 3mm flat glass.
Sensor element: Bourdon tube
Connection: Eccentric lower or rear with 1/4 ”, 3/8” or 1/2 ”NPT or BSP thread.
Socket: AISI 304 stainless steel.
Precision: Class A = 1.5 / 1 / 1.5% of the total scale.
