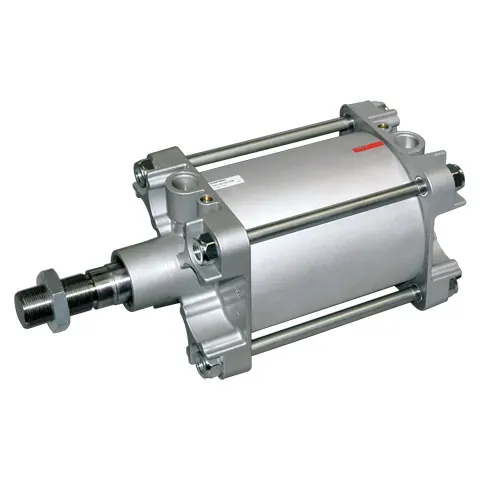

These UNIVER pneumatic cylinders, follow ISO 15552 standards, seek technological advances and improvements that arise from research in recent years. They can completely satisfy the most demanding users. The operation with non-lubricated air deserves to be mentioned, as it allows the use of these cylinders in the most varied industrial sectors. The robust construction and components used are important features that give these products excellent operational characteristics and very long durability.
Models
K 160 – ISO 15552 Pneumatic Cylinders – ø160-200mm – MAGNETIC ON REQUEST
K 200 – ISO 15552 Pneumatic Cylinders – ø160-200mm – MAGNETIC ON REQUEST
Other versions available: tandem, 2 positions, opposite tandem, ordinary rod tandem.
Character
Standard: ISO 6431, ISO 15552;
Work pressure: 1,5 ÷ 10 bar;
Room temperature: -20°C ÷ + 80°C ;
Fluent: Filtered air, with or without lubrication;
Heads: Cast aluminum at pressure;
Shirt: Anodized aluminum;
Braces: Zinc Plated Steel;
Piston: Cast aluminum at pressure;
Haste: Chrome steel, stainless steel on request;
We suffer from guide: Acetallic resin;
Piston / Scraper Rod Gaskets: NBR;
Shock absorbers: Adjustable pneumatic;
