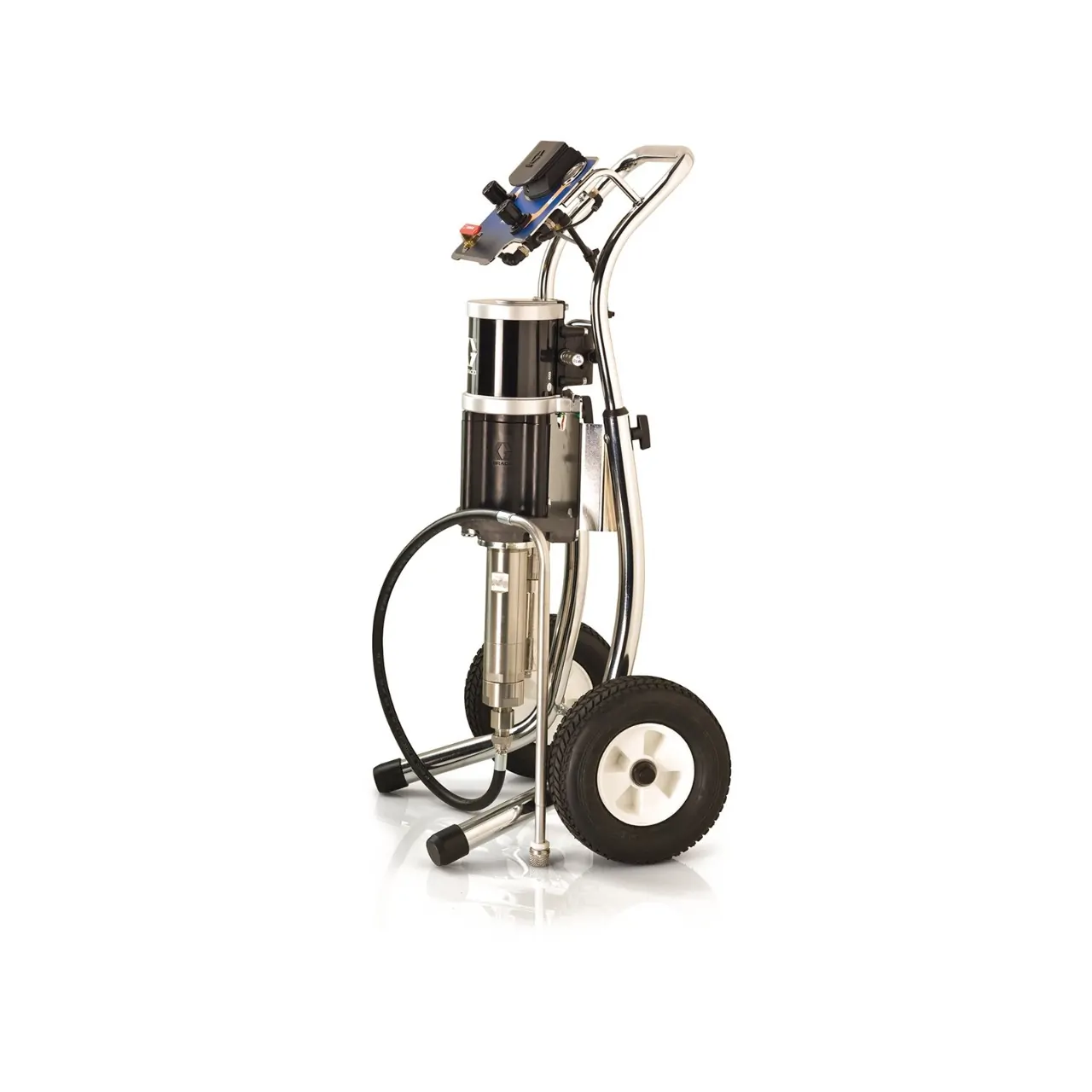

Merkur fine finishing pump packages are designed to improve productivity, reduce costs, decrease emissions and provide consistent, high-quality finishes for all your demanding applications.
| Maximum hose length (feet) | 25 |
|---|---|
| Hose inlet diameter (in.) | 3/16 |
| Power supply | Ar |
| Includes | Air Only Pump Controls, Suction Hose |
| Lubricated materials | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| Model | Mercury |
| Pistol model | Without applicator |
| Weight (lbs) | 98 |
| Pistol included | 0 |
| Maximum working pressure (MPa) | 20.7 |
| Maximum working pressure (psi) | 3000 |
| Pump ratio | 30:1 |
| Series | Mercury 30:1 |
| Fluid inlet size (in.) | 3/4 |
| Fluid outlet size (in.) | 3/8 |
| Maximum Flow Rate (GPM) | 1,2 |
| Pistol technology | Simple systems |
| Type | Simple systems |
| Type of fluid inlet thread | NPT |
| Fluid outlet thread type | NPT |
| Pump type | Pneumatic piston pumps |
| Mounting type | Cart assembly |
| Pistol type | Without applicator |
| Pressure type | Greater Pressure |
| Product type | Simple systems |
| Maximum hose length (m) | 7.5 |
| Hose inlet diameter (cm) | 0.47625 |
| Hose inlet diameter (mm) | 4.7625 |
| Hose inlet diameter (in.) | 3/16 |
| Power supply | Ar |
| Includes | Air Only Pump Controls, Suction Hose |
| Lubricated materials | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| Model | Mercury |
| Pistol model | Without applicator |
| Weight (kg) | 45 |
| Pistol included | 0 |
| Maximum working pressure (MPa) | 20.7 |
| Maximum working pressure (bar) | 207 |
| Maximum working pressure (kPa) | 20700 |
| Maximum working pressure (kg/cm²) | 210.9 |
| Pump ratio | 30:1 |
| Series | Mercury 30:1 |
| Fluid inlet size (mm) | 19.05 |
| Fluid inlet size (in.) | 3/4 |
| Fluid outlet size (mm) | 9.525 |
| Fluid outlet size (in.) | 3/8 |
| Maximum flow rate (L/min) | 4.5 |
| Pistol technology | Simple systems |
| Type | Simple systems |
| Type of fluid inlet thread | NPT |
| Fluid outlet thread type | NPT |
| Pump type | Pneumatic piston pumps |
| Mounting type | Cart assembly |
| Pistol type | Without applicator |
| Pressure type | Greater Pressure |
| Product type | Simple systems |
