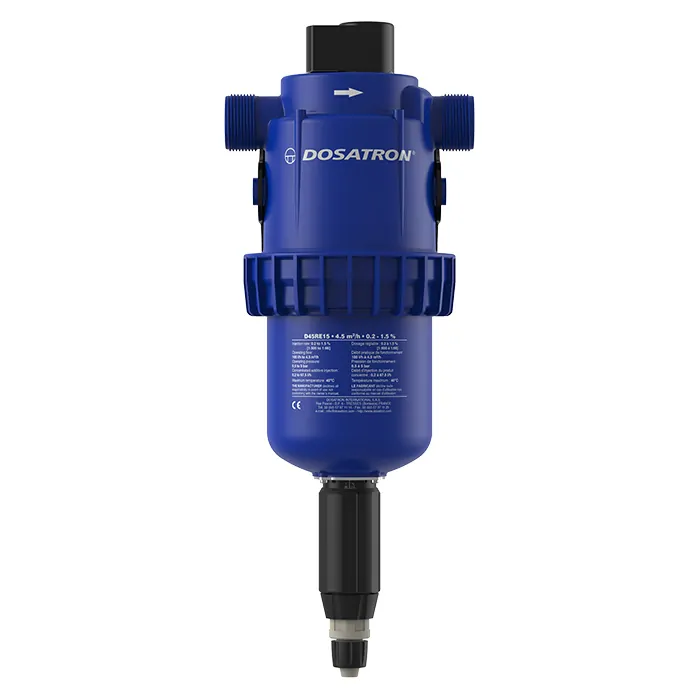

Dosatron D45re15 Dosage Pump

SKU 96154eccb155 Category Dosage Bombs

The D45 line of dispensers meets dosing needs for flow rates from 100 to 4,500 l/h.
It is characterized by:

Proportional dosage and without electricity
Proportionality dependent on water flow
output injection

D45re15 3

More information

Specifications

Injection range0,2 – 1,5% [1:500 – 1:67]
Water flow range100 l/h – 4,5 m3/h
Operational Pressure of Water0,5 – 5 bar
Concentrated additive injection0,2 l/h – 67.5 l/h
stroke volume~ 0.8l
Connections NPT-BSP 1″1/4 M Ø 33x42mm
Hose PVC
