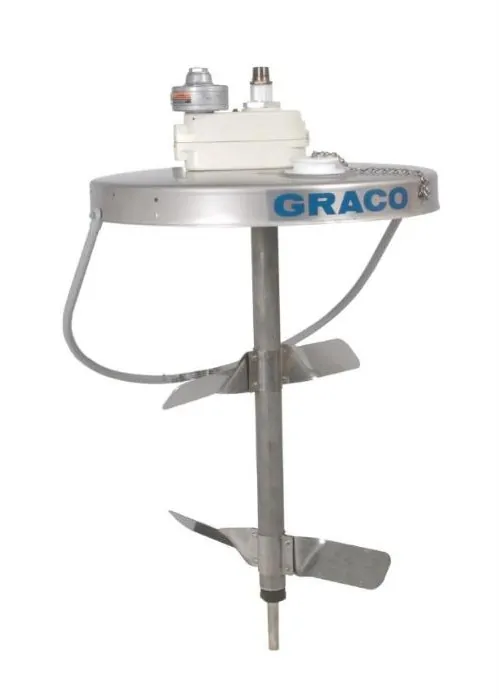

Heavy-duty gearbox mixes high viscosity materials. Leak-free gearbox with less oil prevents material contamination. Stainless steel stirrer and lid for corrosion resistance and compatibility with water-based materials. Double paddles mix finishing materials. Siphon option allows the transfer of material through the agitator shaft. Access port for easy material sampling and inspection during operation. Maximum viscosity 3,000 cps.
| Lubricated materials | Stainless steel, Acetal, AF, Nylon, PTFE |
|---|---|
| For use with | For 208 liter (55 gallon) drum |
| Weight (kg) | 11,7 |
| Maximum working pressure (bar) | 7 |
| Maximum working pressure (kPa) | 700 |
| Maximum inlet air pressure (bar) | 7 |
| Maximum inlet air pressure (kPa) | 700 |
| Maximum inlet air pressure (psi) | 100 |
| Air inlet size (cm) | 0,635 |
| Pump speed (RPM) | 1200 |
| Maximum viscosity (cP) | 3000 |
