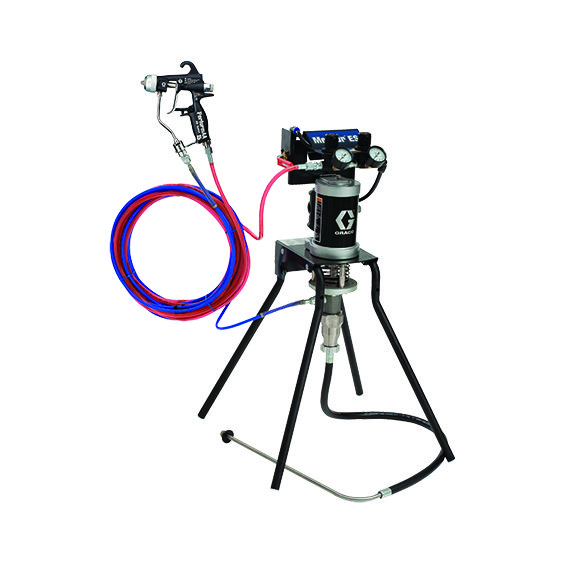

Merkur is one of the most effective sprayers, which is designed to use less material than the competition, and to reduce air use and pulsation.
| Maximum hose length (feet) | 25 |
|---|---|
| Convertible | Not convertible |
| Hose inlet diameter (in.) | 0.125 |
| Power supply | Ar |
| Includes | G15 Gun, Suction Hose, Standing Mount |
| Lubricated materials | Stainless Steel, Nickel Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineering Plastic, Nylon, Fluoroelastomer, Polyethylene |
| Pump sheath material | Carbon steel |
| Model | Mercury |
| Pistol model | PerformAA 15 Air Assist |
| Maximum sound pressure level (dB(A)) | 76.5 |
| Number of guns | 1 |
| Weight (lbs) | 23 |
| Pistol included | 1 |
| Maximum working pressure (MPa) | 10.3 |
| Maximum working pressure (psi) | 1500 |
| Pump ratio | 15:1 |
| Series | ES |
| Fluid outlet size (in.) | 1/4 |
| Maximum nozzle size (in.) | 0.019 |
| Maximum Flow Rate (GPM) | 0,4 |
| Pistol technology | Air assisted |
| Type | Airless/Air Assisted Sprayer |
| Fluid outlet thread type | NPSM |
| Pump type | Pneumatic piston pumps |
| Mounting type | Mounting the bracket |
| Engine type | Pneumatic |
| Pistol type | Air assisted |
| Pressure type | Greater Pressure |
| Product type | Spray Set |
| Type of spray | Air assisted |
| Maximum hose length (m) | 7.6 |
| Convertible | Not convertible |
| Hose inlet diameter (cm) | 0.3175 |
| Hose inlet diameter (mm) | 3 |
| Hose inlet diameter (in.) | 0.125 |
| Power supply | Ar |
| Includes | G15 Gun, Suction Hose, Standing Mount |
| Lubricated materials | Stainless Steel, Nickel Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineering Plastic, Nylon, Fluoroelastomer, Polyethylene |
| Pump sheath material | Carbon steel |
| Model | Mercury |
| Pistol model | PerformAA 15 Air Assist |
| Maximum sound pressure level (dB(A)) | 76.5 |
| Number of guns | 1 |
| Weight (kg) | 10.4 |
| Pistol included | 1 |
| Maximum working pressure (MPa) | 10.3 |
| Maximum working pressure (bar) | 103 |
| Maximum working pressure (kPa) | 10300 |
| Pump ratio | 15:1 |
| Series | ES |
| Fluid outlet size (cm) | 0.635 |
| Fluid outlet size (mm) | 6.35 |
| Fluid outlet size (in.) | 1/4 |
| Maximum nozzle size (cm) | 0.0483 |
| Maximum nozzle size (mm) | 0.4826 |
| Maximum nozzle size (in.) | 0.019 |
| Pistol technology | Air assisted |
| Type | Airless/Air Assisted Sprayer |
| Fluid outlet thread type | NPSM |
| Pump type | Pneumatic piston pumps |
| Mounting type | Mounting the bracket |
| Engine type | Pneumatic |
| Pistol type | Air assisted |
| Pressure type | Greater Pressure |
| Product type | Spray Set |
| Type of spray | Air assisted |
